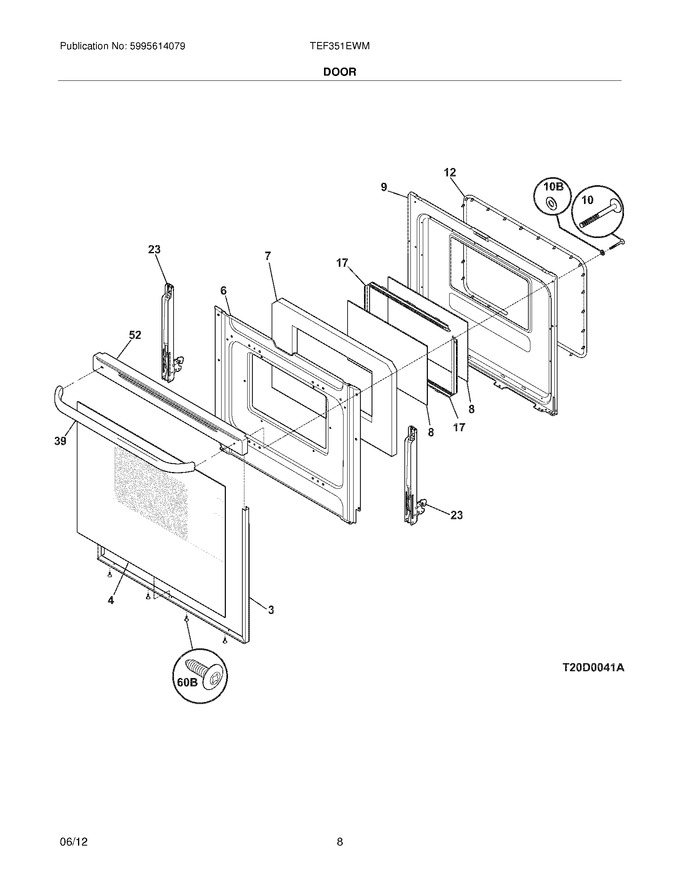

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935377 | Trim Kit-door,3 Sided ,black ,w/tape (Replaces: 5303935317) |
|
Immediately | $ 58.12 | ||||
| 4 | 316406404 | Glass,oven Door ,black ,outer |
|
$ 222.20 | |||||
| 6 | 316406308 | Shield,wool |
|
$ 100.17 | |||||
| 7 | 316405601 | Insulation,oven Door |
|
$ 84.68 | |||||
| 8 | 316427701 | Glass,oven Door ,inner ,(2) |
|
$ 103.74 | |||||
| 9 | 316423703 | Liner,oven Door |
|
$ 191.05 | |||||
| 10 | 316001009 | Screw,waf Hd Sq `10-24 X 1.88 ,(2) ,handle Mtg |
|
$ 15.17 | |||||
| 12 | 316405000 | Seal,oven Door |
|
Immediately | $ 179.17 | ||||
| 17 | 316408803 | Spacer,door Glass ,(2) |
|
$ 32.28 | |||||
| 23 | 316456303 | Hinge,oven Door ,blue Titan ,(2) |
|
$ 146.36 | |||||
| 39 | 5304529996 | Handle,oven Door ,black (Replaces: 316456900) |
|
$ 156.11 | |||||
| 52 | 316575501 | Cap,door Trim ,black |
|
$ 110.73 | |||||
| 10B | 316008401 | Washer,3/4 Od X 1/4 Id ,steel |
|
$ 11.34 | |||||
| 60B | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 |
