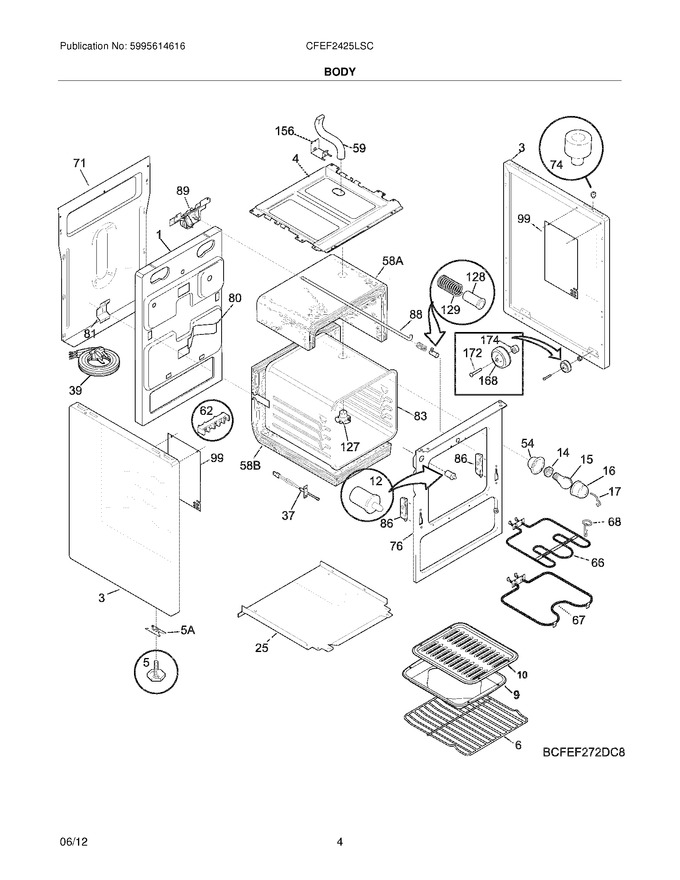

05 - Body


07 - Top/drawer


09 - Door


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318095002		Panel,main Back				$ 122.90
3	318159726		Panel,bodyside ,black ,(2)				$ 79.85
4	318126510		Burner Box				$ 107.42
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	318345201		Rack,oven				$ 82.69
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	5303325069		Shield,oven Bottom		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
59	318072555		Tube,vent ,oven		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
71	318086507		Panel,cover				$ 78.96
74	318147412		Bumper,base				$ 7.33
76	318123104		Frame,oven Front ,w/wheels		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089601		Liner,oven Complete				$ 284.39
86	318561100		Receptacle,hinge ,(2)				$ 21.23
88	5303311160		Rod-latch		Appelez-nous	-
99	5303324441		Panel,baffle		Appelez-nous	-
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
128	318563000		Bushing,latch Rod				$ 25.88
129	5303311164		Spring				$ 18.95
156	318221900		Bracket,vent Tube		Appelez-nous	-
168	08011155		Roller				$ 6.88
172	08011131		Rivet,roller Shaft ,0.250 X 1.500		Appelez-nous	-
174	318531600		Bearing,roller ,(4)				$ 1.56
58A	318285019		Insulation,oven Wrapper		Appelez-nous	-
58B	318285038		Insulation,oven Back		Appelez-nous	-
5A	08013303		Tee Nut,snap-in ,levelling Screw		Appelez-nous	-
F12	318394803		Switch,light ,door			Immediately	$ 44.23
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F39	318113111		Cord,electric				$ 95.55
F66	318255605		Element,broil ,2750w ,6 Pass			Immediately	$ 192.78
F67	318255001		Element,bake ,2400w			Immediately	$ 267.91
F89	318095957		Motor,latch Assy ,w/brkt & Switch			Immediately	$ 127.75
FNI	318564611		Harness,wiring ,main		Appelez-nous	-
FNI	318231809		Harness,wiring ,door Switch		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	318053810		Gasket,vent				$ 29.40
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5303311528		Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black		Appelez-nous	-
NI	3201899		Washer,flat		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323133		Screw,8-18 X 0.500		Appelez-nous	-
