Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318415501		Trim,oven Door ,white				$ 146.53
4	318051812		Glass,oven Door ,white ,outer				$ 406.56
6	318415400		Shield,oven Door				$ 57.17
7	318285023		Insulation,oven Door		Appelez-nous	-
9	318156414		Liner,oven Door				$ 157.03
10	5303323139		Screw,10-24 X 0.906				$ 13.46
12	5303325040		Seal,oven Door				$ 96.34
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139001		Spacer,oven Door Glass ,inner Frame				$ 44.26
18	318293500		Gasket,door Glass Seal				$ 31.61
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318567111		Hinge,oven Door ,(2)		Appelez-nous	-
29	318147412		Bumper,base				$ 7.33
30	318014017		Trim-handle,white				$ 39.38
31	5303310536		Latch,oven Door				$ 30.66
32	318057203		Deflector-handle				$ 5.63
39	318362820		Handle Assembly,door ,white ,w/spacer				$ 115.76
54	316021109		Screw,8-18 X 0.531 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
62	5303310504		Spacer,(2)		Appelez-nous	-
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
7A	318346070		Insulation,door		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	3201899		Washer,flat		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304401361		Screw,8-18 X 0.750 ,black				$ 9.71

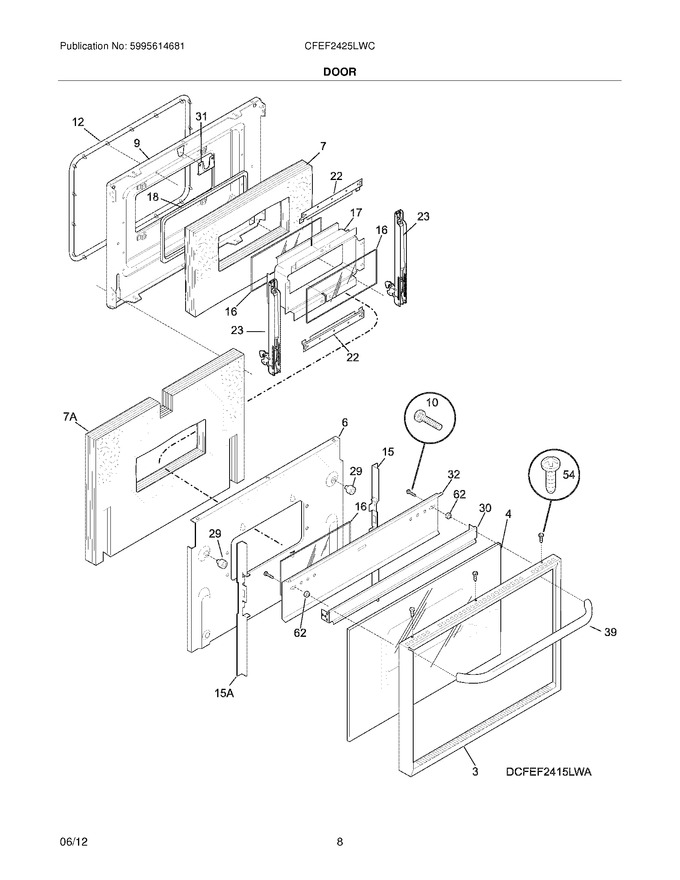

    View Diagram in Separate Window       Print Part List
