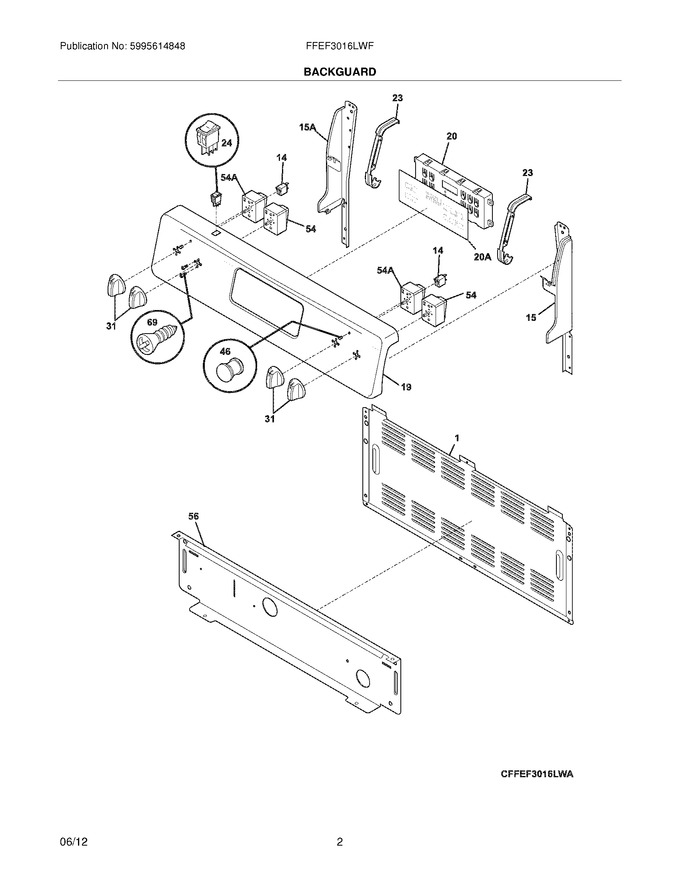

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316541627		Panel,backguard ,white		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 20.48
31	316543800		Knob,control ,white ,(4)			Immediately	$ 27.29
46	316557300		Lens-light/lamp,indicator ,clear			Immediately	$ 16.77
56	316234029		Shield,backguard ,white ,inner   (Replaces: 316234012)				$ 87.17
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419137		Overlay,clock ,white ,es300			Immediately	$ 31.34
F20	5304509493		Clock/timer,electronic ,es300   (Replaces: 316557115)			Immediately	$ 212.37
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 16.13
F54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316902212		Owner`s Guide		Appelez-nous	-
NI	316454912		Installation Instructions		Appelez-nous	-
NI	316441731		Service Tech Sheet,w/wiring Diagrm		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
