Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3392918 Window Appelez-nous -
2 WPW10279703 Hinge & Pin   (Replaces: W10279703) Special Order $ 65.00

3 3392914 Frame, Window Appelez-nous -
4 3392915 Gasket, Window Special Order $ 58.46

8 W10080300 Screw Appelez-nous -
9 WP488627 Screw   (Replaces: 342055) Special Order $ 6.81

10 W10850046 Screw   (Replaces: 9742177) In-Stock Immediately $ 6.47

12 WP3390735 Door Seal   (Replaces: 3390735) Special Order $ 117.54

13 279570 Catch, Door Assembly   (Replaces: 3392538) In-Stock Immediately $ 8.00

14 WPW10213202 Handle, Door   (Replaces: W10213202) In-Stock Immediately $ 74.08

15 W10244331 Door, Inner   (Replaces: W10323063) Appelez-nous -
16 W10322548 Door, Outer Appelez-nous -
NI 3396122 Window Pack Includes Illus. 1 & 4 Appelez-nous -

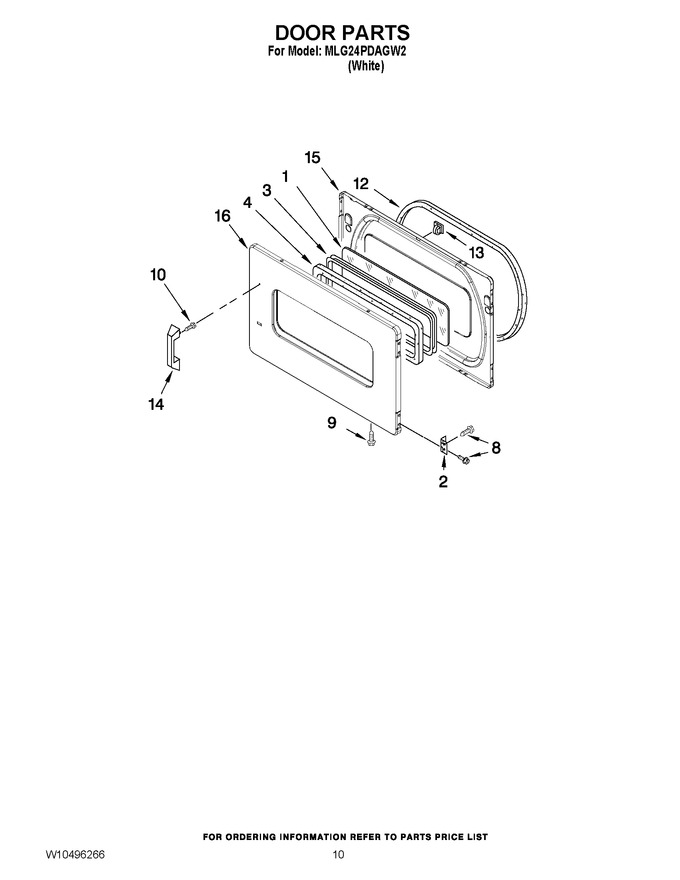

    View Diagram in Separate Window     Print Icon   Print Part List
