SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts

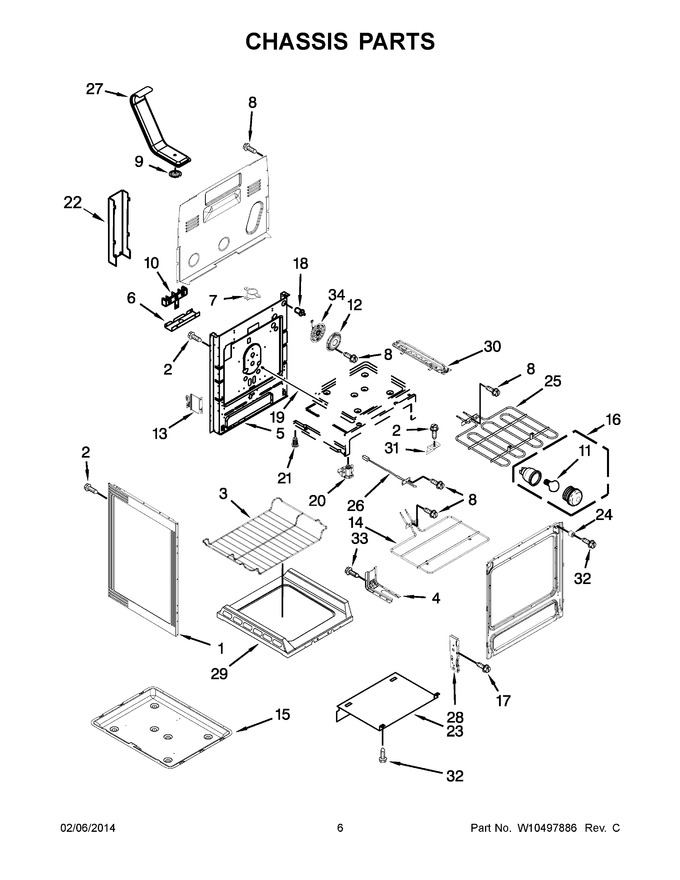

04 - Chassis Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730303		Panel, Side (black)   (Replaces: W10322770)			Immediately	$ 148.35
1	WPW10575396		Panel, Side (white)   (Replaces: W10322769)				$ 133.84
2	3196172		Screw			Immediately	$ 11.55
3	W11256463		Rack, Oven (gull Wing)   (Replaces: W10289145)			Immediately	$ 119.25
4	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
5	W10273169		Back, Main		Appelez-nous	-
6	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
7	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 42.94
8	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
9	9761301		Screen, Vent				$ 126.77
10	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 31.65
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
12	WPW10346154		Cover, Convection   (Replaces: W10346154)			Immediately	$ 66.57
13	W10273002		Bracket, Oven Support				$ 65.43
14	W10779716		Element, Bake   (Replaces: W10289097)			Immediately	$ 55.31
15	W11379357		Pan, Bake   (Replaces: W10346147)			Immediately	$ 71.02
16	W10777162		Assembly, Light   (Replaces: W10031780)			Immediately	$ 7.04
17	WP9757262		Screw   (Replaces: W10627802)			Immediately	$ 130.00
18	W11370463		Switch, Door   (Replaces: W10273192)			Immediately	$ 57.32
19	WPW10341186		Rod, Door Switch   (Replaces: W10341186)			Immediately	$ 29.33
20	WPW10058460		Assembly, Front Foot   (Replaces: W10058460)			Immediately	$ 7.07
21	WPW10326122		Foot, Leveling   (Replaces: W10326122)				$ 119.66
22	W10726740		Cover, Terminal Block   (Replaces: W10289099)				$ 124.31
23	W10877054		Shield, Heat   (Replaces: 9758701)			Immediately	$ 48.05
24	W11321472		Spacer, Door   (Replaces: W10544951)			Immediately	$ 101.29
25	WPW10181986		Element, Broil   (Replaces: W10181986)			Immediately	$ 96.15
26	WPW10134285		Sensor, Oven   (Replaces: W10134285)			Immediately	$ 225.43
27	W10647259		Tube, Vent   (Replaces: W10289077)			Immediately	$ 8.39
28	W10789865		Receiver, Hinge   (Replaces: W10289079)				$ 199.10
29	W11818353		Bottom, Oven   (Replaces: W10390007)				$ 53.71
30	W10035900		Assembly, Base Rail (left)				$ 12.31
30	W11818353		Assembly, Base Rail (right)   (Replaces: W10390008)				$ 53.71
31	W10035900		Support, Oven Bottom				$ 12.31
32	W11169708		Screw   (Replaces: 3196560)				$ 13.36
33	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33
34	WPW10389555		Fan, Convection   (Replaces: W10389555)				$ 255.65
NI	WPW10194393		Insulation, Wrap   (Replaces: W10194393)				$ 110.70
NI	WPW10225524		Insulation, Back   (Replaces: W10225524)				$ 98.30
NI	WPW10225523		Insulation, Bottom Adapter Kit   (Replaces: W10225523)				$ 103.07
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.61
NI	4820F015-59		Insulation Strap				$ 8.39

    View Diagram in Separate Window       Print Part List
