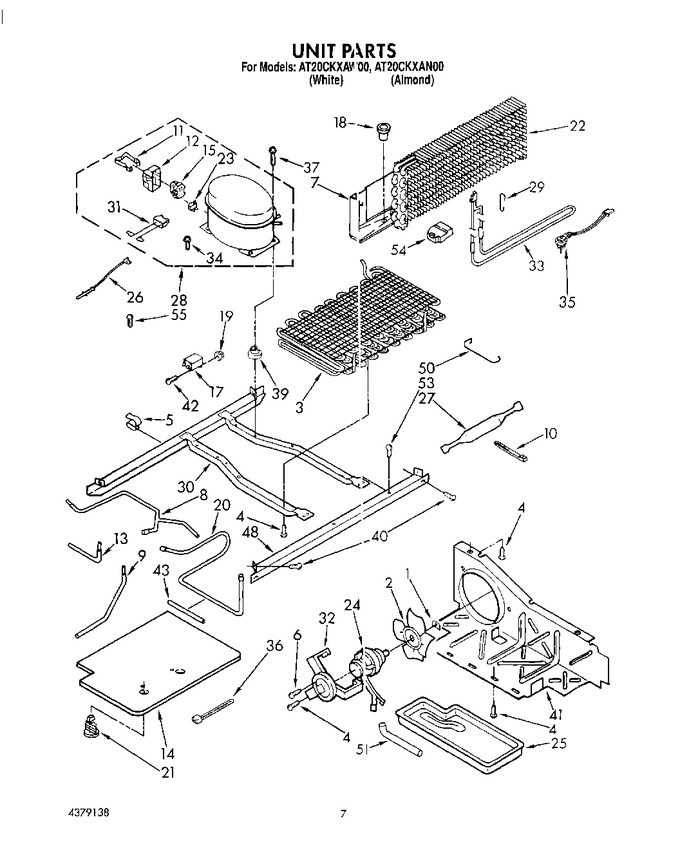

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	851732		Fan, Blade		Appelez-nous	-
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.05
5	548745		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 11.75
7	2153974		Drain Pan/ Heat Shield		Appelez-nous	-
8	2162475		Tube, Discharge		Appelez-nous	-
9	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
10	WPW10339879		Strap   (Replaces: 2155774)				$ 7.11
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	2154109		Tube, Process				$ 65.37
14	2160505		Unit Cover, Bottom		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	WPW10662129		Running Capacitor (service)   (Replaces: 1118581)			Immediately	$ 52.97
17	2154565		Running Capacitor (production)		Appelez-nous	-
18	981629		Drain Fitting		Appelez-nous	-
19	509812		Grommet, Screw		Appelez-nous	-
20	2162472		Tube, Suction		Appelez-nous	-
21	489396		Clip (2)				$ 9.65
22	2153978		Evaporator		Appelez-nous	-
23	1108114		Overload) (service (includes Relay)		Appelez-nous	-
23	4387535		Overload (production (includes Relay))   (Replaces: 2159596)				$ 163.76
24	833697		Fan, Motor   (Replaces: 2154735)			Immediately	$ 79.34
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 101.86
26	2159678		Wire Assembly (red)		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 47.31
28	W10439652		Compressor (includes Items 11 12, 15, 17, 23, 31, 34, 39) (also Order)   (Replaces: 2154557)				$ 379.03
28	876765		Tube Kit			Immediately	$ 77.70
29	2149120		Support, Heater		Appelez-nous	-
30	2160498		Unit Mounting Frame		Appelez-nous	-
31	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 7.29
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162019		Heater, Defrost		Appelez-nous	-
34	W11693756		Screw   (Replaces: 487240)			Immediately	$ 12.65
35	WP4387503		Bi-metal, Defrost   (Replaces: 2149643)			Immediately	$ 43.10
36	WPW10339879		Strap   (Replaces: 2165001)				$ 7.11
37	876811		Screw   (Replaces: 489373)				$ 6.68
39	876811		Grommet   (Replaces: 1100826)				$ 6.68
40	489340		Screw		Appelez-nous	-
41	1127938		Air, Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
43	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 18.27
48	2149717		Unit Mounting Rail		Appelez-nous	-
50	1105612		Guard, Fan				$ 36.52
51	2154119		Drain Extension		Appelez-nous	-
53	488454		Screw,		Appelez-nous	-
54	1118805		Support, Evaporator (r.s.)		Appelez-nous	-
54	2159708		Support-evaporator (l.s.)		Appelez-nous	-
55	876764		Valve, Access(3/16``)			Immediately	$ 82.22
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	978030		Valve, Access (3/4``)				$ 117.64
55	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
55	978026		Valve, Access (5/16``)			Immediately	$ 115.28
