SELECT A DIAGRAM

01 - Cooktop Parts

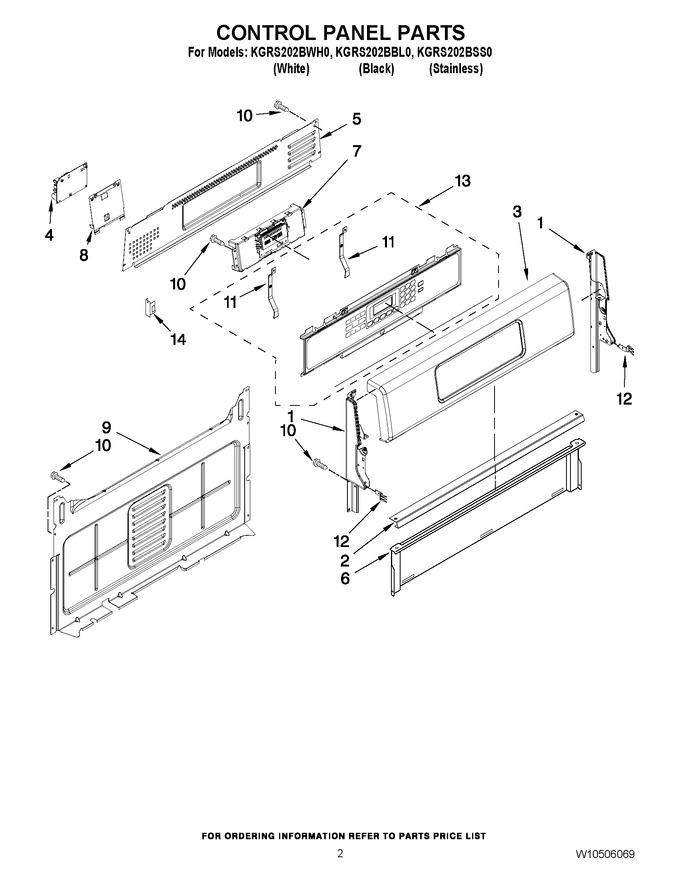

02 - Control Panel Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (left Hand White)   (Replaces: W10184433)				$ 36.39
1	W11219664		Endcap, Left Hand (black)   (Replaces: W10184437)				$ 131.85
1	W11219370		Endcap (right Hand White)   (Replaces: W10184434)				$ 52.14
1	W11219665		Endcap, Right Hand (black)   (Replaces: W10184438)				$ 36.40
2	W10211996		Bracket, Console		Appelez-nous	-
3	W10347960		Console (stainless)		Appelez-nous	-
3	W10347958		Console (white)				$ 120.54
3	W10347959		Console (black)		Appelez-nous	-
4	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 354.47
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	WPW10340699		Control, Mrc   (Replaces: W10340699)				$ 280.75
8	W10493274		Bracket, Dsi		Appelez-nous	-
9	W10184251		Cover, Main Wire		Appelez-nous	-
10	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
11	W10318546		Bracket, Control		Appelez-nous	-
12	8523412		Bracket, Rear				$ 143.91
13	W10324433		Assembly, Overlay				$ 301.00
14	8522425		Module, Spark				$ 122.75

    View Diagram in Separate Window       Print Part List
