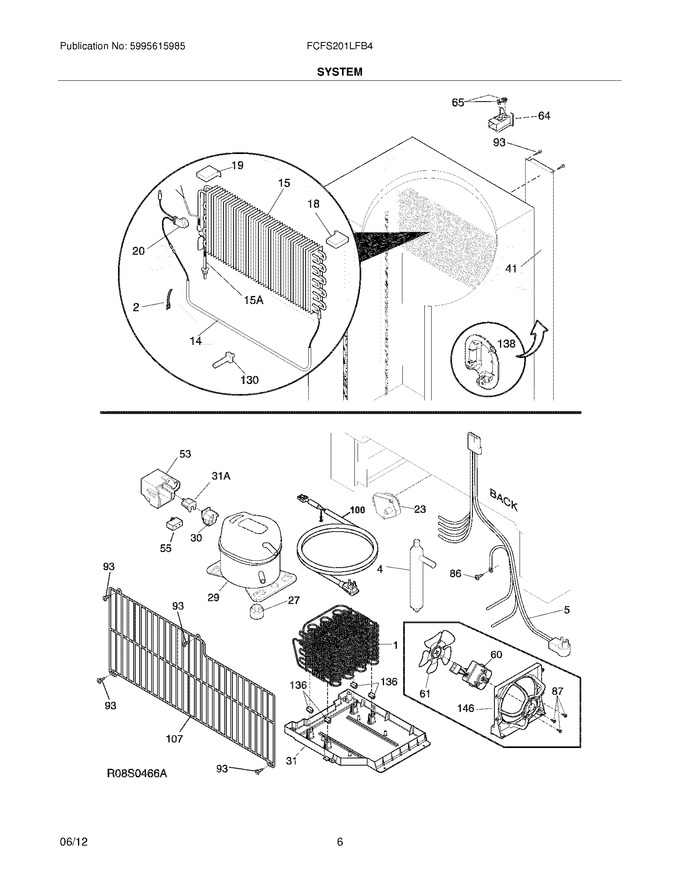

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 116.44 | ||||
| 18 | 297078701 | Insulator-evap,styrofoam ,rh |
|
$ 3.62 | |||||
| 19 | 297078801 | Insulator-evap,styrofoam ,lh |
|
$ 3.62 | |||||
| 20 | 297216600 | Thermostat,defrost |
|
Immediately | $ 27.52 | ||||
| 31 | 297165801 | Pan-drain |
|
$ 67.46 | |||||
| 41 | 297070700 | Cover-wiring,rear |
|
- | |||||
| 53 | 216894500 | Cover-terminal |
|
- | |||||
| 60 | 297279500 | Motor-condenser Fan |
|
Immediately | $ 141.66 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 64 | 216578800 | Vent |
|
$ 47.83 | |||||
| 65 | 5309950074 | Valve, Breather |
|
$ 12.48 | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 13.65 | |||||
| 87 | 5304463290 | Screw,hi-lo Blunt ,no.8-18x1/2 |
|
- | |||||
| 107 | 297225501 | Cover,access |
|
$ 74.81 | |||||
| 130 | 297244700 | Support,evaporator Mtg |
|
$ 4.26 | |||||
| 136 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 138 | 297070800 | Cover-drain Hose |
|
$ 8.24 | |||||
| 146 | 297164000 | Shroud-fan Orfice |
|
$ 76.97 | |||||
| 15A | 297363100 | Heat Exchanger (Replaces: 297219100) |
|
$ 148.92 | |||||
| F1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| F100 | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 68.68 | |||||
| F146 | 216337701 | Screw,hwh ,10-24 X 0.500 ,swage |
|
$ 14.41 | |||||
| F15 | 297311300 | Evaporator |
|
$ 201.73 | |||||
| F23 | 5304518034 | Timer Defrost 115v Tab (Replaces: 297318010) |
|
Immediately | $ 57.55 | ||||
| F29 | 216966900 | Compressor,assy |
|
- | |||||
| F30 | 216894200 | Starter,relay |
|
Immediately | $ 35.44 | ||||
| F31A | 216100126 | Overload Protector |
|
$ 85.30 | |||||
| F4 | 5303305677 | Filter - Dryer (Replaces: 216938601) |
|
Immediately | $ 31.67 | ||||
| F5 | 297337300 | Harness-main |
|
$ 136.87 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| NI | 297082300 | Harness-jumper |
|
- | |||||
| NI | 216987800 | Adapter-harness |
|
$ 48.20 | |||||
| NI | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| NI | 5303311565 | Clip-cable |
|
$ 2.10 | |||||
| NI | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| NI | 297102800 | Spacer-tube |
|
- |
