SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

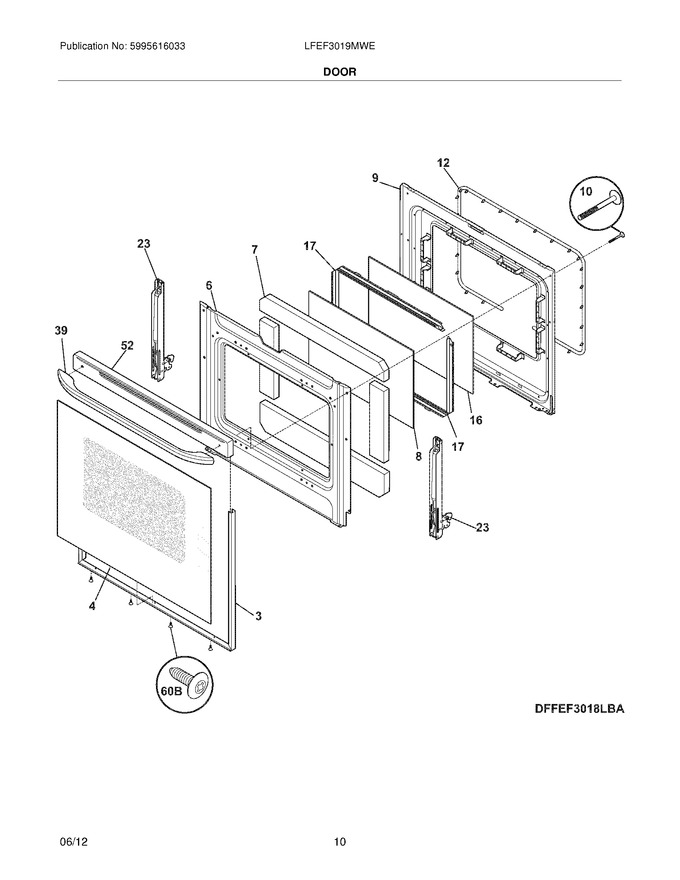

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935318		Trim Kit-door,3 Sided ,white ,w/tape			Immediately	$ 83.64
4	316566406		Glass Assembly,outer ,white				$ 240.93
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation,oven Door				$ 76.55
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117502)				$ 116.95
9	316423701		Liner,oven Door				$ 143.50
10	316433300		Screw,10-14 X 2.125`` ,handle Mtg.			Immediately	$ 27.50
12	316405000		Seal,oven Door			Immediately	$ 179.17
16	5304503232		Glass,oven Door ,inner   (Replaces: 316117503)				$ 116.95
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316559901)			Immediately	$ 25.02
23	316456309		Hinge,oven Door ,black ,(2)				$ 71.87
39	316545301		Handle,door/drawer ,white			Immediately	$ 130.85
52	316575500		Cap,door Trim ,white			Immediately	$ 122.09
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316112005		Anti Tip Kit,assembly			Immediately	$ 18.91
