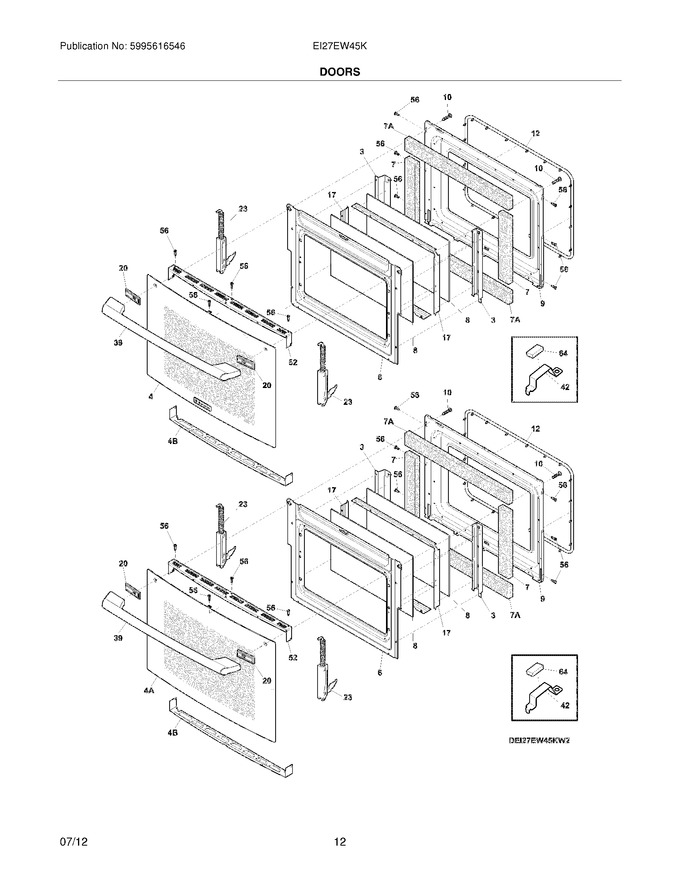

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket,insulation ,(2)				$ 17.75
4	318299539		Glass Assy.,upper Door ,white ,outer ,w/trim & Badge		Appelez-nous	-
6	318901002		Deflector,door   (Replaces: 318901001)		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318900816		Liner,oven Door		Appelez-nous	-
10	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
12	318053136		Gasket,oven Door Seal				$ 124.16
17	318264701		Spacer,glass ,(2)		Appelez-nous	-
20	318902900		Spacer,handle ,white ,(2)				$ 18.46
23	318586004		Hinge,oven Door		Appelez-nous	-
39	241881316		Handle,door ,white		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318901603		Trim,door ,black ,upper		Appelez-nous	-
56	5304462581		Screw,8-32 X 5/16				$ 11.34
64	5304455945		Spacer,pad		Appelez-nous	-
4A	318299540		Glass Assy.,lower Door ,white ,outer ,w/trim		Appelez-nous	-
4B	318901803		Trim,door ,black ,bottom		Appelez-nous	-
7A	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
