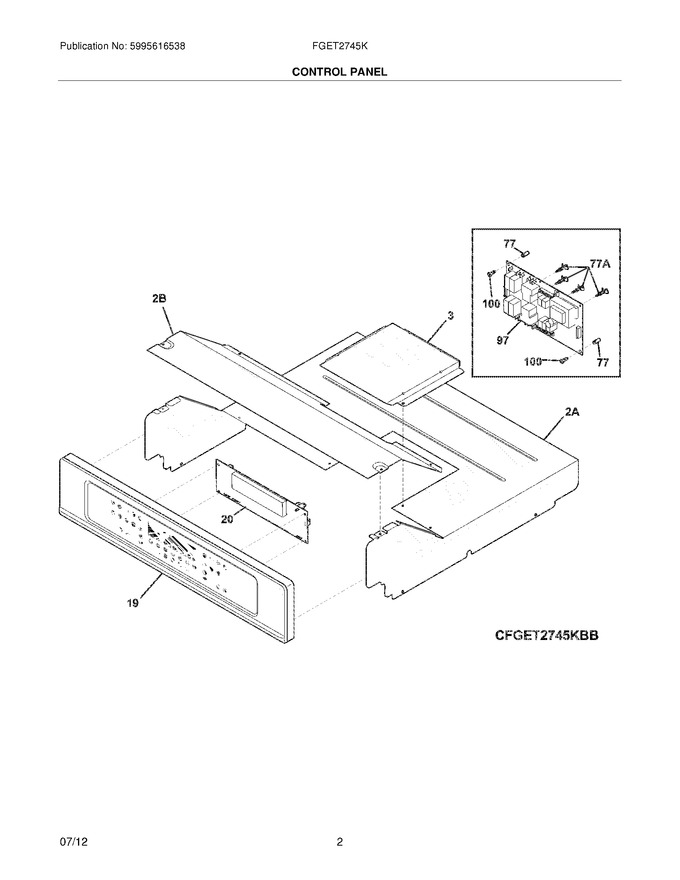

03 - Control Panel


05 - Upper Oven


07 - Lower Oven


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318577801		Box,fan Service		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
100	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
2A	318257306		Shield,oven Top		Appelez-nous	-
2B	318260105		Cover,box		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
F19	318575118		Panel Assembly,control ,black ,w/overlay-trim		Appelez-nous	-
F20	316443871		Control,electronic ,es610w0 ,dual Oven		Appelez-nous	-
F97	316443947		Board,relay ,dual Oven		Appelez-nous	-
FNI	5304517327		Wiring Harness,timer ,to Relay Board   (Replaces: 318370374)				$ 83.42
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
