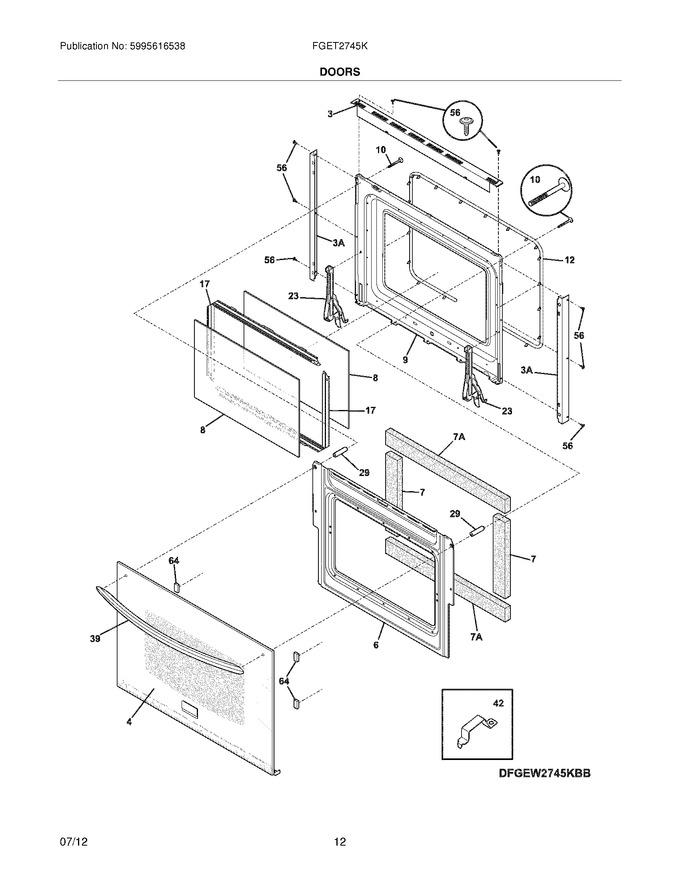

09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260217		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318304134		Glass Assy.,oven Door ,white ,outer ,w/trim		Appelez-nous	-
4	318261326		Glass Assy.,oven Door ,white ,outer ,w/trim & Badge		Appelez-nous	-
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259672		Liner,oven Door		Appelez-nous	-
10	5304453223		Screw,handle Mtg ,10-14 X 1.82 ,(2)			Immediately	$ 13.19
12	318053137		Gasket,oven Door Seal		Appelez-nous	-
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318567108		Hinge,door ,lower Oven ,(2)		Appelez-nous	-
29	318014405		Spacer,door		Appelez-nous	-
39	318919500		Handle,door ,white		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372001		Insulation,20.5 X 2.375 ,1`` Thick ,(2)		Appelez-nous	-
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
