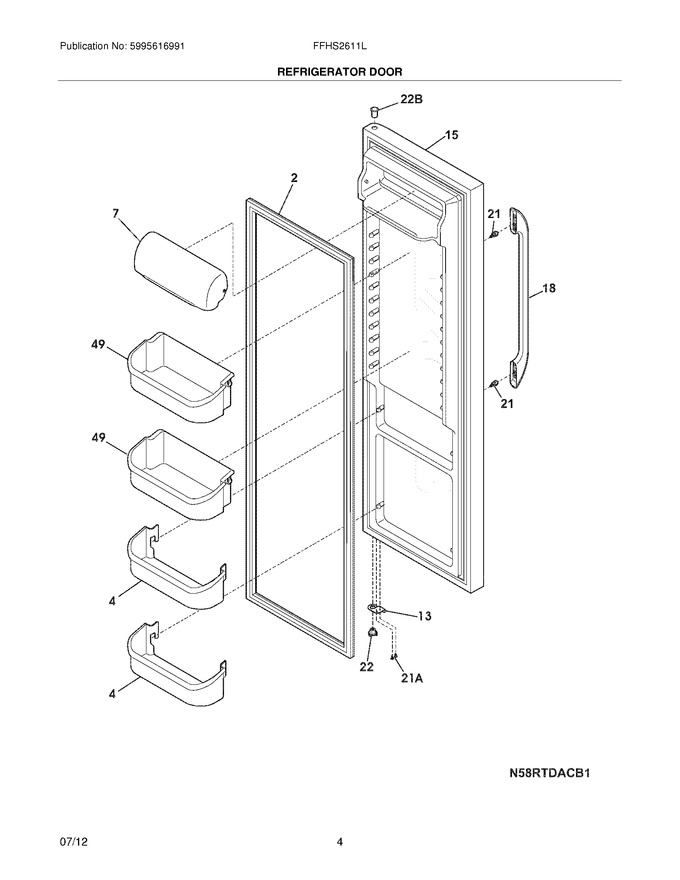

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	240581905		Door Stop,black ,ref				$ 60.25
15	242038869		Door-refr,black ,complete Assy		Appelez-nous	-
18	242059102		Handle-door,black				$ 88.69
21	241695904		Screw				$ 14.41
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
49	240356401		Bin-door,gallon			Immediately	$ 85.64
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
F2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 225.62
