SELECT A DIAGRAM

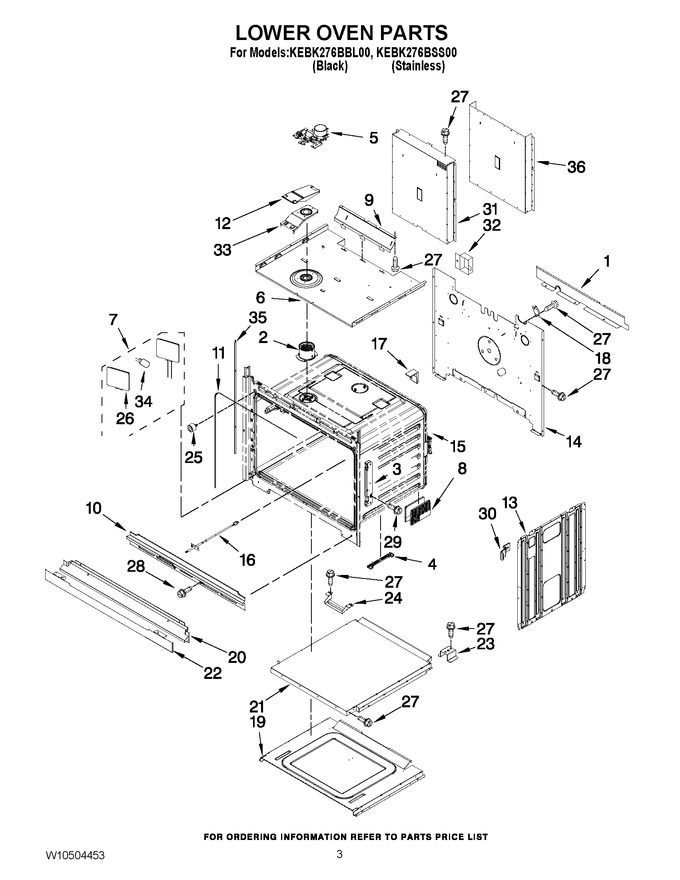

01 - Upper Oven Parts


02 - Lower Oven Parts


03 - Upper Oven Door Parts


04 - Lower Oven Door Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10507009		Chassis, Deflector		Appelez-nous	-
2	W11240525		Tube, Cavity Vent   (Replaces: W10282946)				$ 21.89
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 49.28
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 22.94
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 275.81
6	W10282981		Top, Chassis		Appelez-nous	-
7	WPW10519866		Light, Oven   (Replaces: W10519866)				$ 82.57
8	W10821321		Foot, Base   (Replaces: W10318219)				$ 28.72
9	W10351258		Bracket, Blower Deflector		Appelez-nous	-
10	W10283041		Vent, Center 27``			Immediately	$ 133.57
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 94.73
12	W10616810		Exhaust, Vent Cover   (Replaces: W10282985)				$ 59.96
13	W10318190		Side, Chassis				$ 117.20
14	W10282991		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Sensor   (Replaces: 7430P043-60)			Immediately	$ 119.65
17	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 7.21
18	WP4449751		Thermostat   (Replaces: 4449751)			Immediately	$ 100.66
19	W10282901		Base, Chassis				$ 177.43
20	WPW10327376		Assembly, Bottom Vent (stainless)   (Replaces: W10327376)				$ 151.41
20	W10351276		Assembly, Bottom Vent (black)				$ 125.23
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 188.61
22	WPW10351237		Trim, Bottom Vent (black)   (Replaces: W10351237)				$ 127.69
22	WPW10327378		Trim, Bottom Vent (stainless)   (Replaces: W10327378)			Immediately	$ 192.66
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Chassis, Bottom Duct Spacer				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
29	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
30	W10347649		Spacers, Front				$ 12.87
31	W10318196		Chassis, Back Duct Upper				$ 187.62
32	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Exhaust Vent   (Replaces: W10282984)				$ 27.63
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
35	W10536161		Trim, Side Black (left)   (Replaces: W10504410)				$ 43.39
35	W10536161		Trim, Side Black (right)   (Replaces: W10504409)				$ 43.39
36	W10283000		Chassis, Back Duct		Appelez-nous	-
NI	W11688333		Insulation, Cavity   (Replaces: W10282945)		Appelez-nous	-
NI	W10520716		Insulation, Wrap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
