01 - Lower Oven Parts
02 - Upper Oven Parts
03 - Lower Oven Door Parts

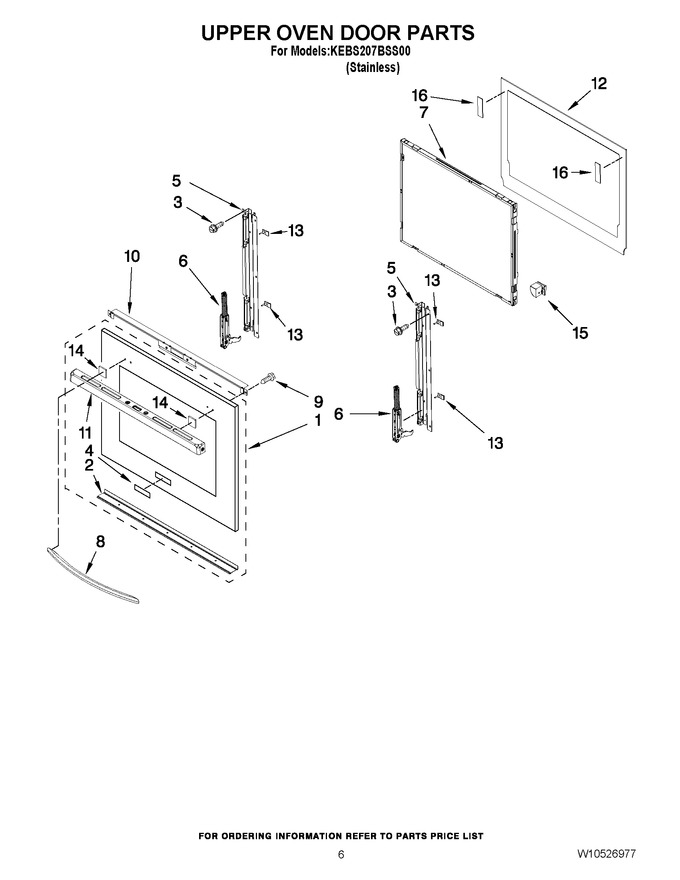

04 - Upper Oven Door Parts
05 - Internal Oven Parts
06 - Control Panel Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10360523 | Assembly, Window Pack (stainless) |
|
- | |||||
| 2 | W10479068 | Bracket, Lower Door (Replaces: W10502555) |
|
$ 17.15 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10243391 | Badge (stainless) (Replaces: W10243391) |
|
$ 49.98 | |||||
| 5 | W10284279 | Rail, Door Side (left) |
|
- | |||||
| 5 | W10284278 | Rail, Door Side (right) |
|
- | |||||
| 6 | W10825778 | Hinge, Door (Replaces: W10419877) |
|
Immediately | $ 93.89 | ||||
| 7 | WPW10347598 | Assembly, Inner Glass (Replaces: W10347598) |
|
Immediately | $ 280.76 | ||||
| 8 | WPW10289076 | Door Handle (stainless) (Replaces: W10289076) |
|
$ 286.81 | |||||
| 9 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.16 | ||||
| 10 | W10459351 | Bracket, Upper, Glass |
|
$ 73.27 | |||||
| 11 | WPW10416257 | Vent, Door Top (Replaces: W10416257) |
|
$ 237.74 | |||||
| 12 | WPW10335920 | Liner, Door (Replaces: W10335920) |
|
$ 374.34 | |||||
| 13 | WPW10323551 | Bumper, Rail (Replaces: W10323551) |
|
$ 7.21 | |||||
| 14 | W10840861 | Spacer (Replaces: W10517440) |
|
$ 8.89 | |||||
| 15 | W10284284 | Bracket, Door Side (left) |
|
- | |||||
| 15 | WPW10581826 | Bracket, Door Side (right) (Replaces: W10284283) |
|
$ 57.11 | |||||
| 16 | WPW10517428 | Spacer (Replaces: W10517428) |
|
Immediately | $ 10.67 |
