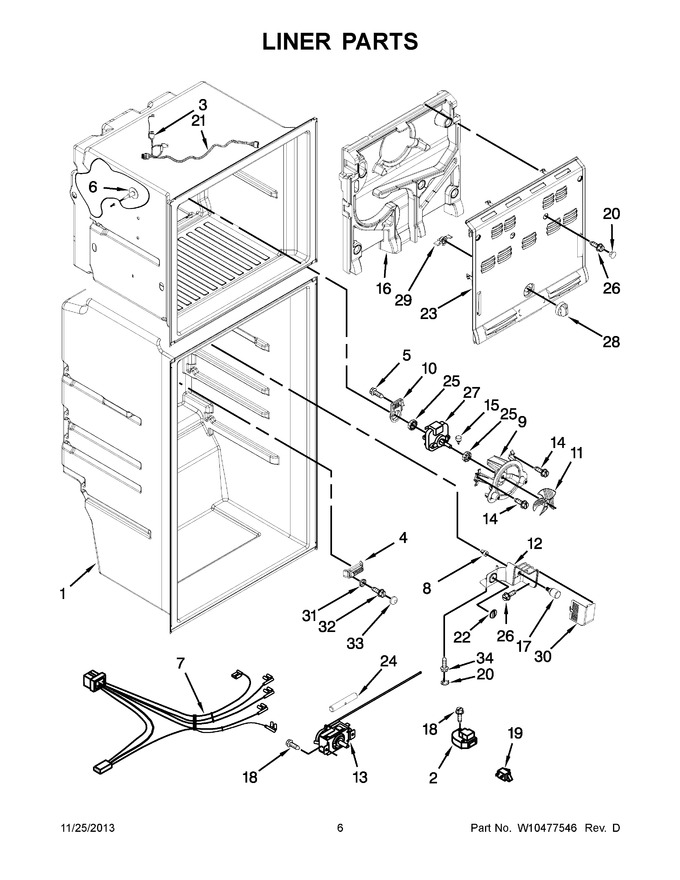

04 - Liner Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2162045 | Timer, Defrost (Replaces: 2162045) |
|
$ 200.97 | |||||
| 3 | WPW10225581 | Bi-metal, Defrost (Replaces: 2266067) |
|
Immediately | $ 45.69 | ||||
| 4 | W10286060 | Housing |
|
$ 59.75 | |||||
| 5 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 9.51 | |||||
| 6 | WP941839 | Plug, Hole (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 7 | W10412780 | Assembly, Control Box Wire |
|
- | |||||
| 8 | W10545295 | Socket, Light (Replaces: 2263413) |
|
- | |||||
| 9 | W10261254 | Frame, Fan Motor |
|
- | |||||
| 10 | W10251274 | Support, Motor |
|
- | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | WPW10489073 | Box, Control (Replaces: W10489073) |
|
$ 196.23 | |||||
| 13 | WPW10530058 | Thermostat (Replaces: W10273879) |
|
$ 193.34 | |||||
| 14 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 15 | W10225835 | Damper |
|
- | |||||
| 16 | W11170274 | Cover, Evaporator Back (Replaces: W10420509) |
|
$ 197.49 | |||||
| 17 | W11518235 | Bulb, Light (Replaces: W10473925) |
|
Immediately | $ 26.36 | ||||
| 18 | WP487353 | Screw (Replaces: 488693) |
|
$ 6.81 | |||||
| 19 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | W10854527 | Cover, Screw (Replaces: W10487421) |
|
$ 8.47 | |||||
| 21 | W10492757 | Assembly, Evaporator Fan Wire |
|
- | |||||
| 22 | W10465179 | Knob, Thermostat |
|
$ 14.92 | |||||
| 23 | W10489072 | Cover, Evaporator Front |
|
$ 196.91 | |||||
| 24 | W10675407 | Mass, Inertial (Replaces: W10490685) |
|
- | |||||
| 25 | W10225833 | Grommet, Motor |
|
$ 35.73 | |||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 27 | W10253821 | Motor, Evaporator Fan |
|
- | |||||
| 28 | W10465177 | Knob, Freezer Control |
|
$ 24.39 | |||||
| 29 | W10261263 | Flapper |
|
$ 8.51 | |||||
| 30 | W10356446 | Lens, Control Box |
|
- | |||||
| 31 | W10260017 | Washer, Dome Cap |
|
- | |||||
| 32 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 33 | W10260016 | Cap, Dome (white) |
|
- | |||||
| 34 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 |
