View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Oven Parts

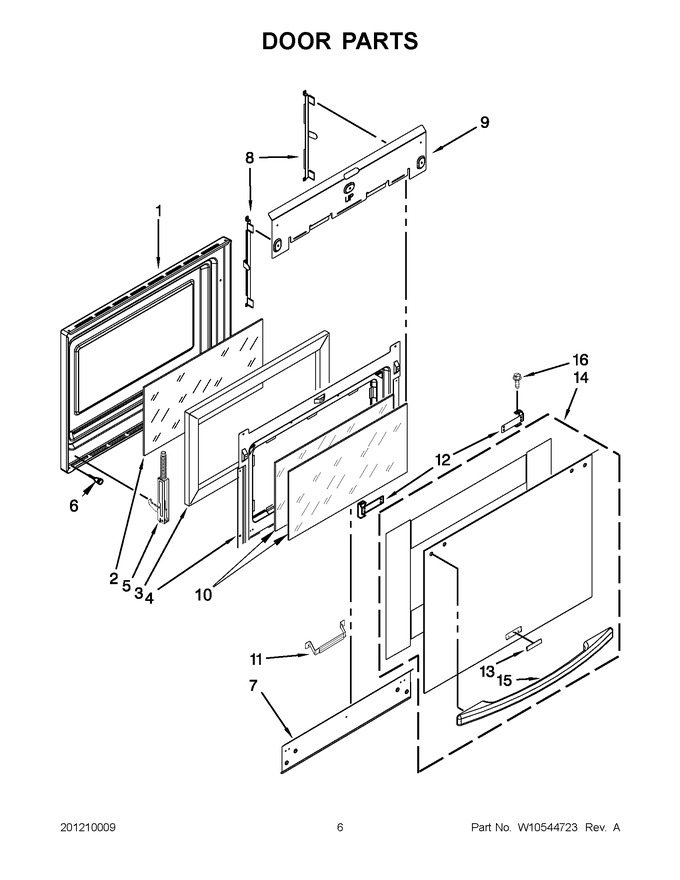

03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting
08 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10277749 | Liner, Door |
|
$ 137.60 | |||||
| 2 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 3 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 162.66 | |||||
| 4 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 275.13 | |||||
| 5 | WP9760574 | Hinge, Oven Door (left) (Replaces: 9760574) |
|
Immediately | $ 60.36 | ||||
| 5 | WP9760579 | Hinge, Oven Door (right) (Replaces: 9760579) |
|
Immediately | $ 64.35 | ||||
| 6 | 4448520 | Bumper, Door |
|
$ 19.07 | |||||
| 7 | 4457114 | Shield, Heat Bottom |
|
$ 186.68 | |||||
| 8 | WP9759229 | Bracket, Side (Replaces: 9759229) |
|
$ 160.71 | |||||
| 9 | 4457104 | Shield, Heat Top |
|
$ 33.62 | |||||
| 10 | WP9759225 | Inner, Glass 4mm (Replaces: 9759225) |
|
Immediately | $ 174.78 | ||||
| 11 | 9759230 | Bracket, Central |
|
$ 36.30 | |||||
| 12 | W10246113 | Bracket, Handle (bracket, Left) |
|
$ 28.40 | |||||
| 12 | W10246114 | Bracket, Handle (bracket, Right) |
|
$ 41.38 | |||||
| 13 | WPW10243393 | Badge (white) (Replaces: W10243393) |
|
$ 59.99 | |||||
| 14 | W10131889 | Assembly, Door Kit (white) |
|
$ 382.56 | |||||
| 15 | W10525162 | Handle, Door (white) |
|
- | |||||
| 16 | WPW10132940 | Screw (Replaces: 3196184) |
|
$ 8.50 |
