01 - Cover Sheet
02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:

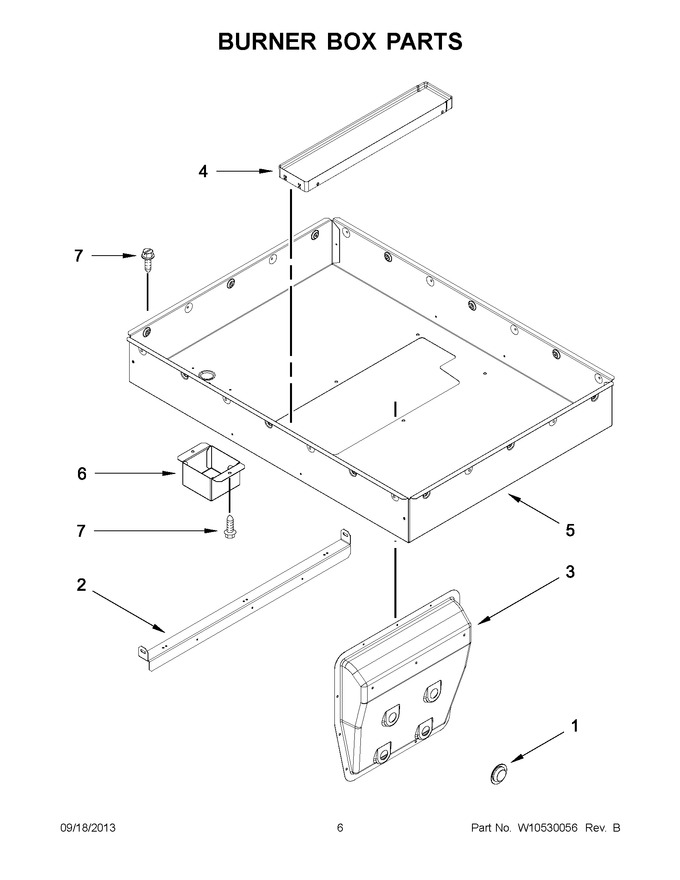

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7718P023-60 | Plug, Hole |
|
$ 8.98 | |||||
| 2 | W10254665 | Rail, Extender |
|
$ 42.36 | |||||
| 3 | W10184125 | Bypass, Plenum Side |
|
$ 181.44 | |||||
| 4 | W10235990 | Tray, Spill |
|
$ 73.51 | |||||
| 5 | N/P | Bottom, Burner (not Serviced) |
|
- | |||||
| 6 | W10258697 | Cover, Blower Motor Harness |
|
Immediately | $ 81.29 | ||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 |
