SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts

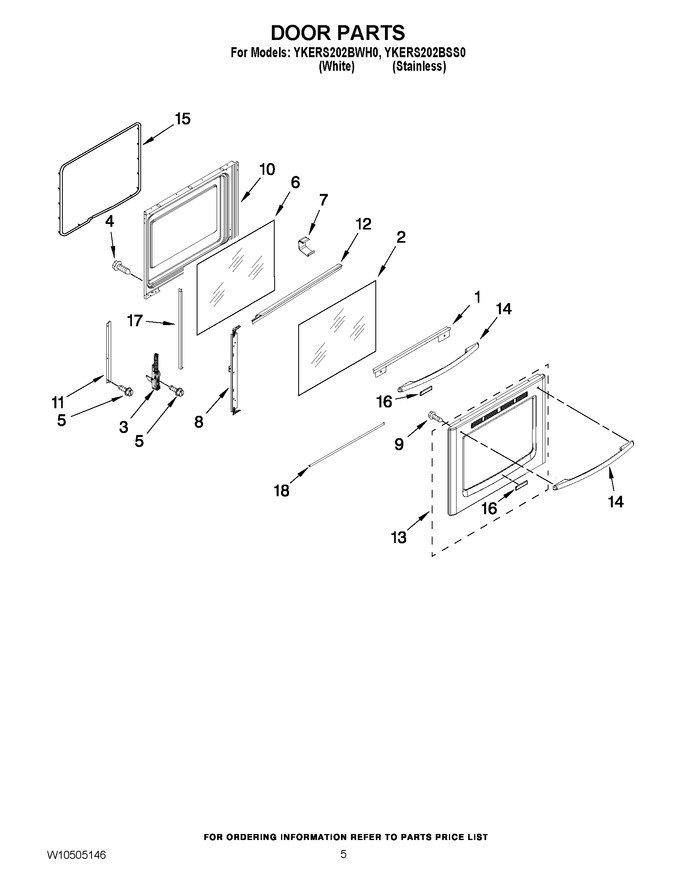

04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10339814		Trim, Vent (ss)				$ 139.33
1	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 112.82
2	WPW10495962		Glass, Outer Door (white)   (Replaces: W10495962)				$ 345.23
2	WPW10495964		Glass, Outer Door (ss)   (Replaces: W10495964)				$ 319.58
3	WPW10440013		Hinge, Active Door (ss)   (Replaces: W10388635)			Immediately	$ 57.42
3	WPW10440013		Hinge, Active Door (white)   (Replaces: W10440013)			Immediately	$ 57.42
4	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 12.62
6	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 227.18
7	W10137382		Clip, Glass			Immediately	$ 41.50
8	W11116956		Rail, Door   (Replaces: W10294851)				$ 114.64
9	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 6.98
10	WPW10297318		Lining, Door   (Replaces: W10297318)			Immediately	$ 284.15
11	W10294852		Bracket, Glass				$ 144.19
12	W10294853		Bracket, Glass Liner			Immediately	$ 203.18
13	WPW10490829		Skin, Door (ss)   (Replaces: W10490829)				$ 323.11
14	WPW10289076		Handle, Door (ss)   (Replaces: W10289076)				$ 286.81
14	W10284917		Handle, Door (white)				$ 234.66
15	W11562931		Gasket, Door   (Replaces: W10162385)			Immediately	$ 78.98
16	WPW10243391		Nameplate (ss)   (Replaces: W10243391)				$ 49.98
16	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 59.99
17	W10334003		Trim, Side			Immediately	$ 76.12
18	WPW10333990		Trim, Lower   (Replaces: W10333990)			Immediately	$ 46.71

    View Diagram in Separate Window       Print Part List
