01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts

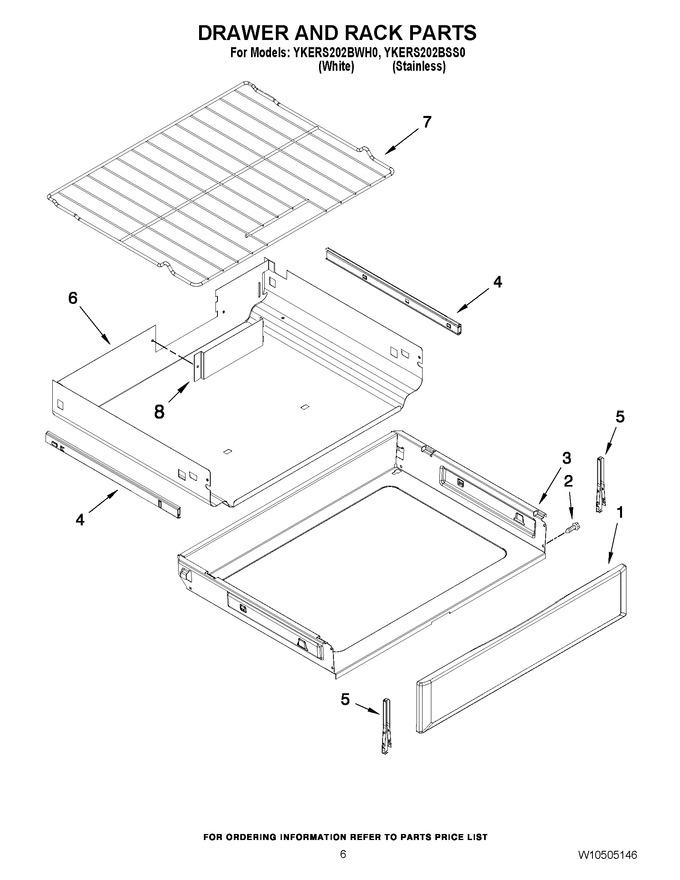

05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11297552 | Panel, Drawer (white) (Replaces: W10330051) |
|
$ 176.36 | |||||
| 1 | W11280103 | Panel, Drawer (stainless) (Replaces: W10330054) |
|
Immediately | $ 186.96 | ||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 4 | WPW10441804 | Slide, Drawer (left Hand) (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 4 | WPW10441805 | Slide, Drawer (right Hand) (Replaces: W10441805) |
|
Immediately | $ 92.68 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 103.00 | |||||
| 6 | W10634260 | Enclosure, Drawer (Replaces: W10106394) |
|
Immediately | $ 179.16 | ||||
| 7 | W10460125 | Rack, Oven |
|
$ 118.76 | |||||
| 8 | W10325438 | Cover, Panel |
|
$ 134.56 |
