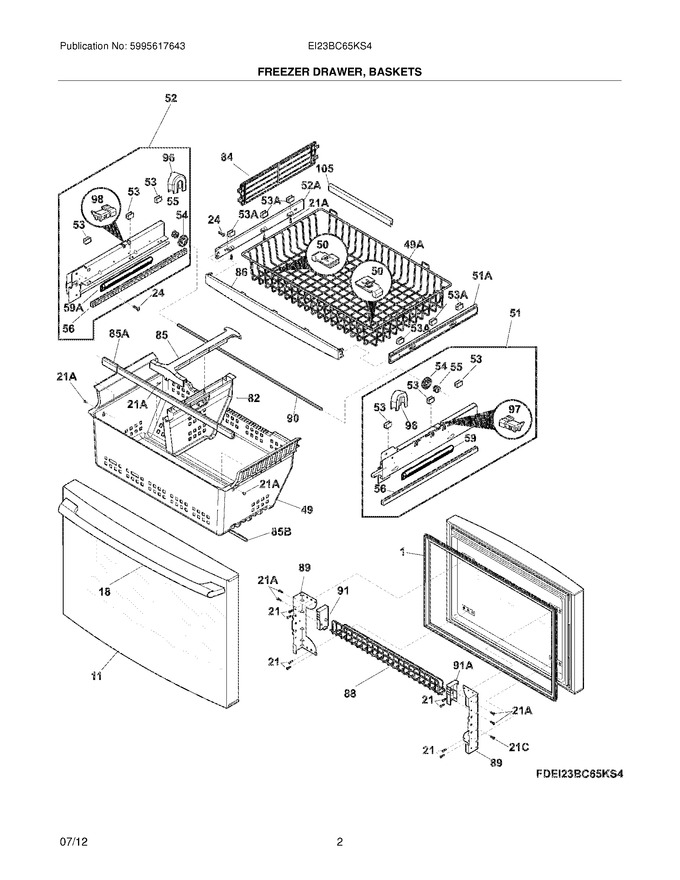

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241987922 | Drawer,stainless ,freezer |
|
$ 713.58 | |||||
| 18 | 241881310 | Handle-frzr Drawer,stainless |
|
$ 271.45 | |||||
| 21 | 241695904 | Screw |
|
$ 14.41 | |||||
| 24 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 5304526200 | Basket-frzr,plastic ,lower (Replaces: 242130801) |
|
Immediately | $ 147.57 | ||||
| 50 | 242219502 | Clip-basket,pull Side |
|
$ 18.95 | |||||
| 51 | 241883605 | Slide Assembly,basket Lower ,rh ,freezer Drawer |
|
$ 252.89 | |||||
| 52 | 241883705 | Slide Assembly,basket Lower ,lh ,freezer Drawer |
|
$ 263.24 | |||||
| 53 | 241824201 | Retainer-basket |
|
$ 63.89 | |||||
| 54 | 241770201 | Pinion |
|
$ 34.73 | |||||
| 55 | 241770301 | Pinion-idler |
|
$ 21.97 | |||||
| 56 | 242163802 | Rack,drawer Travel ,rh |
|
$ 13.99 | |||||
| 56 | 242163801 | Rack,drawer Travel ,lh |
|
$ 14.98 | |||||
| 59 | 5304474655 | Closure,drawer (Replaces: 241979702) |
|
$ 70.88 | |||||
| 82 | 242131401 | Divider,basket |
|
$ 65.88 | |||||
| 84 | 241780905 | Divider,basket |
|
$ 91.43 | |||||
| 85 | 242139401 | Divider,basket ,lower |
|
$ 87.21 | |||||
| 86 | 5304507340 | Trim,drawer ,stabilizer (Replaces: 241807605) |
|
Immediately | $ 45.55 | ||||
| 88 | 241824008 | Rack-non-tilt Out,door |
|
$ 123.62 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 241770705 | Bar,timing (Replaces: 241770702) |
|
$ 50.66 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 17.44 | |||||
| 96 | 241973501 | Cover-pinion (Replaces: 242156901) |
|
$ 57.27 | |||||
| 97 | 241926401 | Actuator,rh ,white ,light |
|
$ 17.54 | |||||
| 98 | 241926402 | Actuator,lh ,white ,light |
|
$ 16.55 | |||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 21C | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc |
|
$ 15.92 | |||||
| 49A | 241780811 | Basket-frzr,upper |
|
$ 212.93 | |||||
| 51A | 241894221 | Slide Assembly,basket ,rh ,freezer Drawer (Replaces: 241894217) |
|
$ 133.25 | |||||
| 52A | 241894222 | Slide Assembly,basket ,lh ,freezer Drawer (Replaces: 241894218) |
|
$ 133.96 | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| 59A | 241979701 | Closure,drawer |
|
- | |||||
| 85A | 242139301 | Support-beam,divider ,lower Basket |
|
$ 73.71 | |||||
| 85B | 241872203 | Support-beam,lower Basket |
|
$ 53.85 | |||||
| 91A | 241824101 | Cap,door Rack ,white |
|
$ 17.44 | |||||
| F1 | 5304537408 | Gasket-frzr Drawer,gray ,magnetic (Replaces: 241778308) |
|
Immediately | $ 86.28 | ||||
| F21C | 5304497384 | Plate,tapping (Replaces: 242147601) |
|
$ 15.60 | |||||
| F85B | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| NI | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| NI | 242139201 | Spring-compression,divider ,lower Basket |
|
$ 19.72 | |||||
| NI | 241979601 | Bumper,rubber |
|
$ 22.68 | |||||
| NI | 242039701 | Screw |
|
$ 13.46 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NI | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 |
