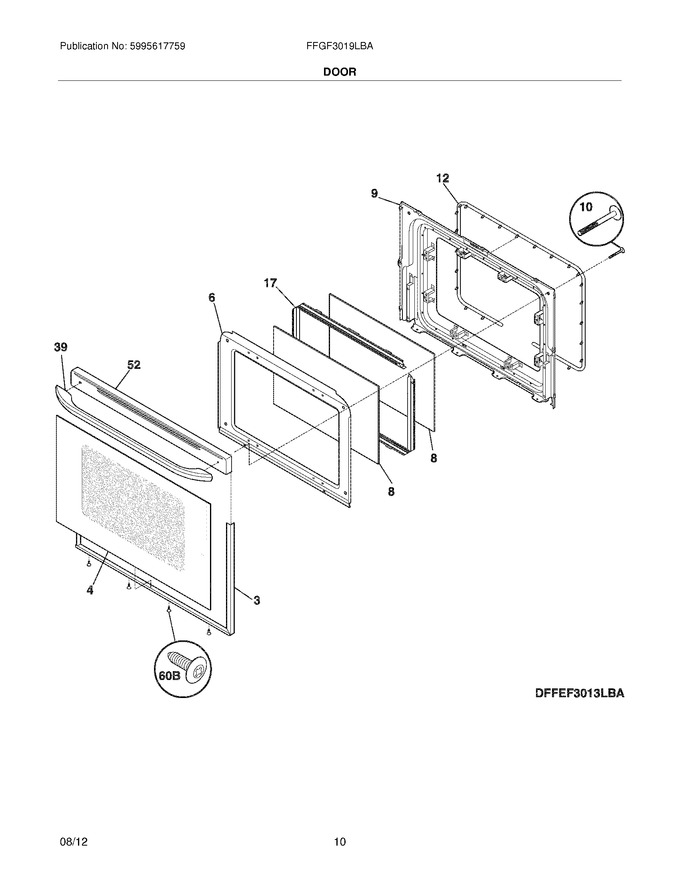

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935345		Trim Kit-door,3 Sided ,black ,w/tape				$ 53.34
4	316202820		Glass-oven Door,black ,outer		Appelez-nous	-
6	316222711		Shield,wool ,black ,oven Door				$ 47.90
8	5304503232		Glass,oven Door ,clear ,heat Barrier ,(2)   (Replaces: 316237100)				$ 116.95
9	316230629		Liner,oven Door		Appelez-nous	-
10	316278700		Screw,10-14 X 1.365`` ,handle Mtg.   (Replaces: 316433301)			Immediately	$ 27.50
12	316239700		Seal,oven Door			Immediately	$ 152.43
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	316545300		Handle,door/drawer ,black				$ 137.92
52	316491201		Cap,door Trim ,black				$ 99.94
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316112005		Anti Tip Kit,assembly			Immediately	$ 18.91
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
