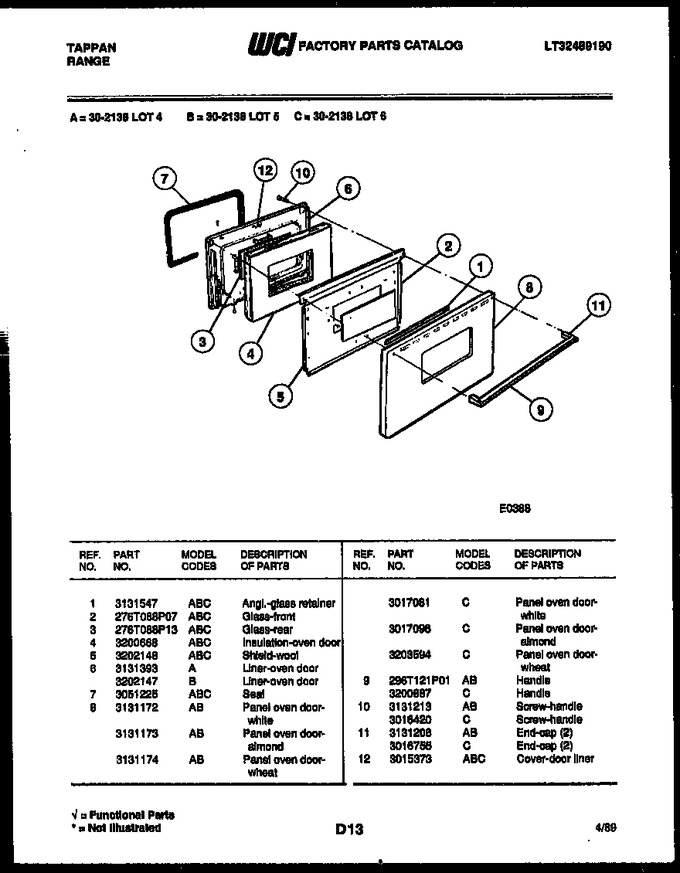

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131547 | Angl.-glass Retainer |
|
- | |||||
| 2 | 276T088P07 | Glass-front |
|
- | |||||
| 3 | 276T088P13 | Glass (rear) |
|
- | |||||
| 4 | 3200668 | Insulation-oven Door |
|
- | |||||
| 5 | 3202148 | Shield-wool |
|
- | |||||
| 6 | 3131393 | Liner, Oven Door |
|
- | |||||
| 7 | 3051225 | Seal |
|
- | |||||
| 8 | 3131174 | Panel-oven Door (wheat) |
|
- | |||||
| 9 | 296T121P01 | Handle |
|
- | |||||
| 10 | 3131213 | Screw-handle |
|
- | |||||
| 11 | 3131206 | End-cap (2) |
|
- | |||||
| 12 | 3015373 | Cover-door Liner |
|
- |
