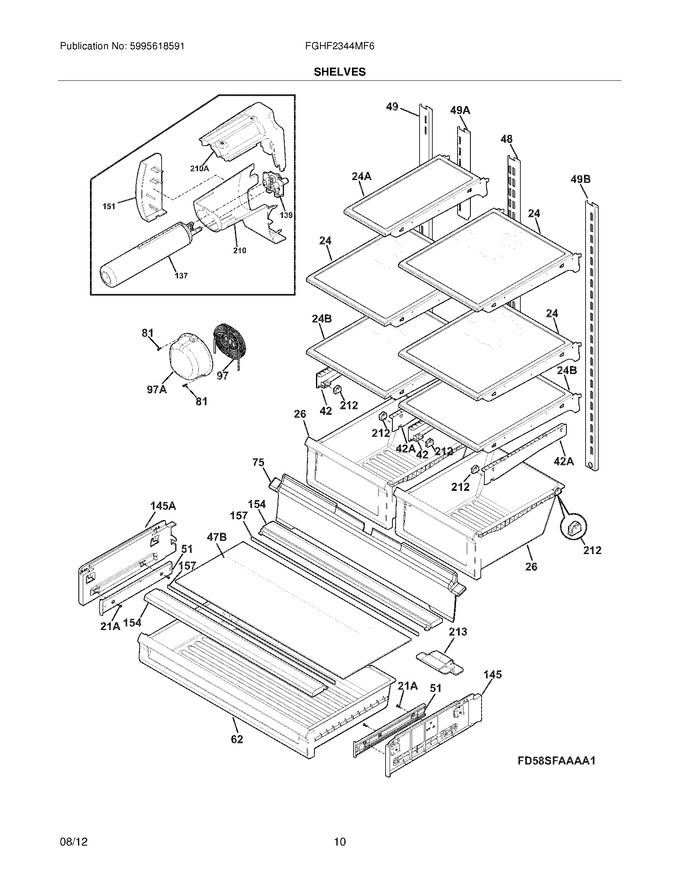

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 242068704 | Shelf,sliding ,cantilever ,``spill-safe`` |
|
$ 191.94 | |||||
| 26 | 241801803 | Pan-crisper,(2) |
|
$ 235.17 | |||||
| 42 | 242079401 | Support,crspr Pan Rolle |
|
Immediately | $ 31.19 | ||||
| 48 | 242122101 | Channel-shelf Mtg,center |
|
$ 80.09 | |||||
| 49 | 242122201 | Channel-shelf Mtg,side ,lh |
|
$ 45.89 | |||||
| 51 | 242120001 | Slide-deli |
|
Immediately | $ 165.85 | ||||
| 62 | 242096815 | Pan-deli (Replaces: 242096803) |
|
$ 169.65 | |||||
| 75 | 242072702 | Shield-light,refr |
|
$ 115.25 | |||||
| 81 | 240383407 | Screw,truss Hd Quad ,no.10-16 X .500 ,white |
|
$ 12.76 | |||||
| 97 | 242220501 | Water Tank,coil (Replaces: 242082002) |
|
Immediately | $ 99.23 | ||||
| 137 | ULTRAWF | Filter-water,carbon (Replaces: 241791601) |
|
Immediately | $ 109.49 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 145 | 242120101 | Support,rail |
|
$ 76.59 | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 62.24 | |||||
| 154 | 242082401 | Support |
|
$ 76.22 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 210 | 241983816 | Housing-water Filtr (Replaces: 241983805) |
|
Immediately | $ 73.71 | ||||
| 212 | 241801801 | Roller Assembly,crisper Pan (Replaces: 5304479194) |
|
$ 184.51 | |||||
| 213 | 242010901 | Roller Assy,deli Pan |
|
$ 49.62 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 24A | 242068705 | Shelf-``spill-safe``,cantilever ,1/4 Width,sliding |
|
$ 101.50 | |||||
| 24B | 242068706 | Shelf,fixed ,spill Safe |
|
Immediately | $ 212.35 | ||||
| 42A | 242079402 | Support,crspr Pan Rolle |
|
Immediately | $ 43.10 | ||||
| 47B | 242082302 | Glass,deli Cover |
|
- | |||||
| 49A | 5304531311 | Channel-shelf Mtg,center ,icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg,side ,rh |
|
$ 77.97 | |||||
| 97A | 242117301 | Cover-water Tank |
|
$ 72.18 | |||||
| F145 | 242120102 | Support,rail |
|
$ 72.30 | |||||
| F154 | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| F210 | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| NI | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 242110260 | Energy Guide |
|
- |
