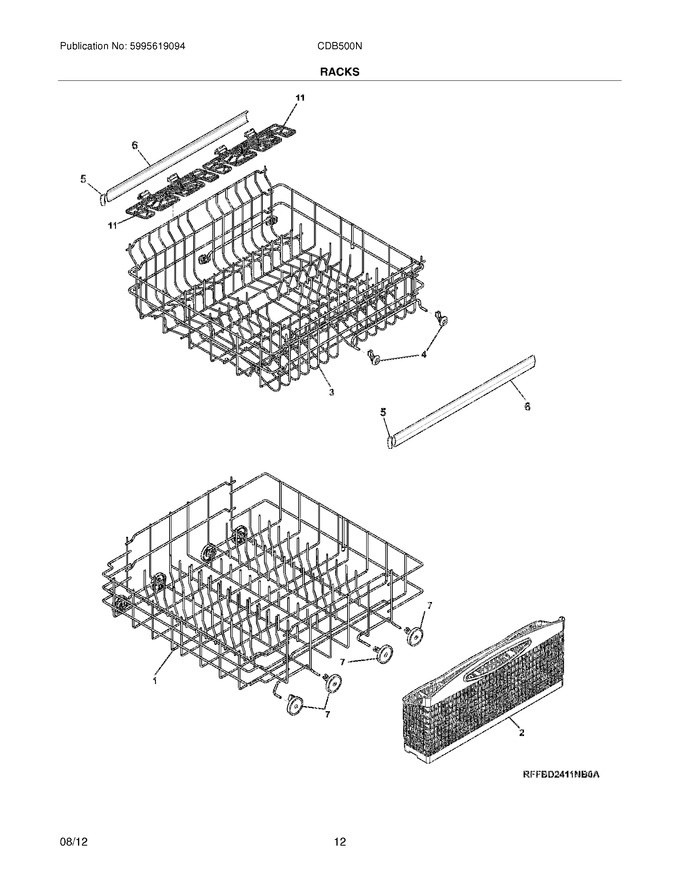

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304535768 | Rack Assembly,lower (Replaces: 154866702) |
|
Immediately | $ 162.61 | ||||
| 2 | 5304535382 | Basket,silverware ,white (Replaces: 154556101) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954072 | Rack Assembly,upper (Replaces: 154866505) |
|
Immediately | $ 145.13 | ||||
| 4 | 154522902 | Wheel & Bushing Assy,upper Rack ,(8) (Replaces: 154522901) |
|
$ 39.54 | |||||
| 5 | 5300809927 | Cap,slide ,(4) |
|
Immediately | $ 3.69 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,lower Rack (Replaces: 154174502) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf,cup,half Width,white . (Replaces: 154793901) |
|
$ 7.42 | |||||
| NI | 5304488230 | Plate,decorative ,grey ,front |
|
- |
