01 - Cover Sheet

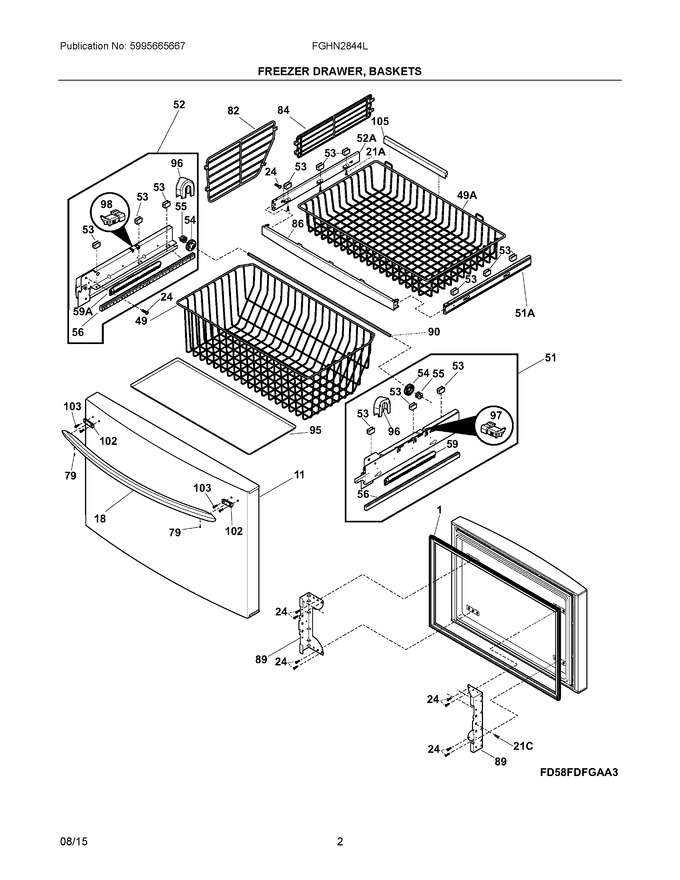

02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Controls


08 - Ice Maker


09 - Wiring Diagram


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket-frzr Drawer, Gray, Magnetic   (Replaces: 241778308)			Immediately	$ 86.28
11	241987921		Door-frzr, Stainless, Complete Assy				$ 653.57
18	242029401		Handle-door, Stainless				$ 198.45
24	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242026801		Basket-frzr, Lower				$ 252.95
51	241883604		Slide Assembly, Basket Lower, Rh, Freezer Drawer			Immediately	$ 287.06
52	241883704		Slide Assembly, Basket Lower, Lh, Freezer Drawer				$ 350.37
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	242158001		Rack-drawer Travel				$ 43.89
59	5304474655		Closure, Drawer   (Replaces: 241979702)				$ 70.88
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
82	242026901		Divider, Basket				$ 61.81
84	241780904		Divider, Basket, Upper   (Replaces: 241780901)				$ 71.29
86	5304507340		Trim, Drawer, Stabilizer   (Replaces: 241807605)			Immediately	$ 45.55
89	241972302		Bracket-freezer Drawer				$ 109.21
90	241770705		Bar, Timing   (Replaces: 241770702)				$ 50.66
95	241770808		Tray, Spill Guard				$ 98.33
96	241973501		Cover, Pinion   (Replaces: 242156901)				$ 57.27
97	241926401		Actuator, Rh, White, Light				$ 17.54
98	241926402		Actuator, Lh, White, Light				$ 16.55
102	242029301		Block-handle Mtg				$ 24.80
103	242077302		Screw, #10 Ab Flat Hd			Immediately	$ 7.79
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw, #8 - 18 X .380, 3			Immediately	$ 17.11
21C	242146401		Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4)			Immediately	$ 14.27
49A	241780805		Basket-frzr, Upper				$ 180.98
51A	241894223		Slide Assembly, Basket, Rh, Freezer Drawer   (Replaces: 241894211)			Immediately	$ 132.53
52A	241894224		Slide Assembly, Basket, Lh, Freezer Drawer   (Replaces: 241894213)				$ 131.83
59A	241979701		Closure, Drawer		Appelez-nous	-
NI	241899703		Screw, Truss Head, #10-32 X 1/4, Zinc				$ 15.92
NI	241601001		Wrench, Allen		Appelez-nous	-
NIA	242011101		Pin-lock				$ 15.17
NIA	241999901		Guide, Divider, Plastic (abs), Lower				$ 25.10
NIA	241979601		Bumper, Rubber				$ 22.68
NIA	241701902		Screwdriver, Hex, 3/32", Ball Driver				$ 19.85
NIA	242039701		Screw				$ 13.46
NIB	241999902		Guide, Divider, Plastic (abs), Lower, Lh				$ 21.27
NICA	5304497384		Plate, Tapping   (Replaces: 242147601)				$ 15.60

    View Diagram in Separate Window       Print Part List
