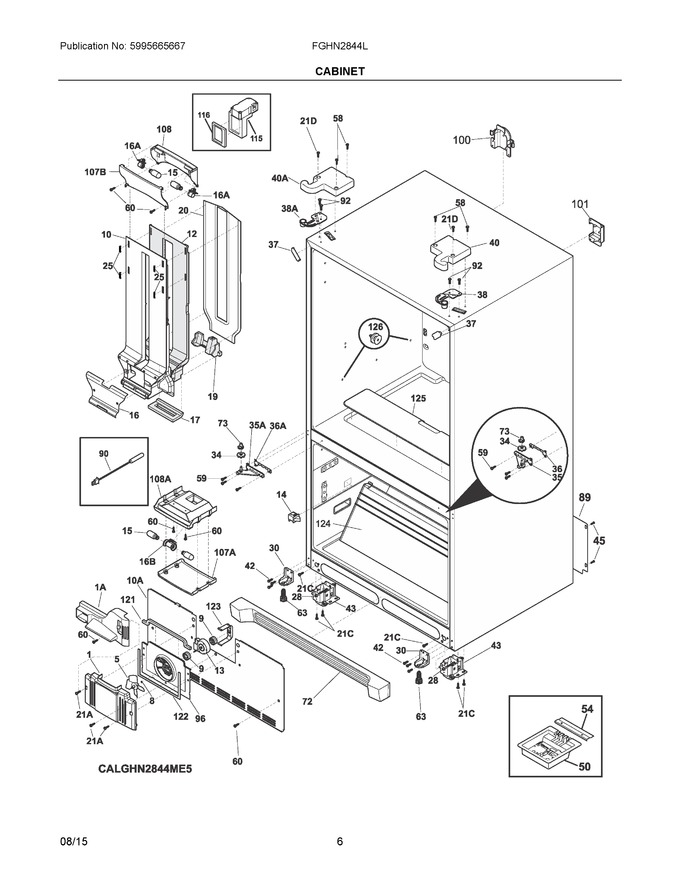

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241859701 | Cover-fan |
|
$ 49.86 | |||||
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 49.03 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing, Motor Mounting |
|
$ 66.63 | |||||
| 10 | 242072001 | Cover-air Duct |
|
$ 154.67 | |||||
| 12 | 242072402 | Insulation-air Duct |
|
$ 34.02 | |||||
| 13 | 809069220 | Motor, Evaporator Fan (Replaces: 241509402) |
|
Immediately | $ 154.14 | ||||
| 14 | 240505801 | Switch, Light/lamp |
|
$ 66.63 | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 241552807) |
|
Immediately | $ 73.06 | ||||
| 16 | 242072101 | Cover-damper |
|
$ 50.63 | |||||
| 17 | 5303918479 | Gasket-air Duct/liner (Replaces: 242071901) |
|
$ 45.41 | |||||
| 19 | 242072601 | Support-eps Damper |
|
$ 47.78 | |||||
| 20 | 242072201 | Cover-air Duct, Rear |
|
$ 96.95 | |||||
| 25 | 241949502 | Clip, Air Vent |
|
$ 20.48 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 31.33 | ||||
| 30 | 241778701 | Bracket-anti Tip |
|
$ 26.54 | |||||
| 34 | 241868301 | Washer, Hinge, Nylon, (2) |
|
$ 31.19 | |||||
| 35 | 241763005 | Hinge-lower, Zinc, Rh |
|
- | |||||
| 36 | 241868201 | Spacer, Door, Lower Rh |
|
$ 49.62 | |||||
| 37 | 242161201 | Trim-cabinet Corner, White, (2) (Replaces: 240337608) |
|
Immediately | $ 2.93 | ||||
| 38 | 241761301 | Bracket-upper Hinge, Rh |
|
$ 66.25 | |||||
| 40 | 242099802 | Cover-upper Hinge, White |
|
$ 54.34 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Front, (2) (Replaces: 240335006) |
|
Immediately | $ 31.33 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 50 | 241996325 | Board-main Power |
|
- | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 58 | 218781101 | Screw, Pan Head, 8-18 X 0.625 |
|
$ 15.60 | |||||
| 59 | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 60 | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 12.05 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 38.39 | ||||
| 72 | 242054804 | Grille/kickplate, White (Replaces: 242054803) |
|
$ 83.64 | |||||
| 73 | 242075701 | Cam-lower Hinge |
|
$ 22.75 | |||||
| 89 | 5304520905 | Cover-access, W/label (Replaces: 241733905) |
|
Immediately | $ 74.03 | ||||
| 90 | 240597220 | Sensor, (2) (Replaces: 240597203) |
|
Immediately | $ 5.16 | ||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 96 | 241860601 | Shroud-evap Fan Mtg |
|
Immediately | $ 131.83 | ||||
| 100 | 242157601 | Cover, Tubing, Eps Block |
|
$ 11.92 | |||||
| 101 | 242157801 | Cover, Tubing, Eps Block |
|
$ 23.13 | |||||
| 108 | 241971402 | Cover-wiring, Top Air Duct |
|
$ 38.17 | |||||
| 115 | 5303918899 | Damper, Motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper, Foam |
|
$ 9.22 | |||||
| 121 | 241860103 | Gasket-evap, Upper |
|
Immediately | $ 3.73 | ||||
| 122 | 241860117 | Gasket-evap, Bottom (Replaces: 241860102) |
|
Immediately | $ 11.21 | ||||
| 123 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 124 | 242006903 | Duct-air, Freezer (Replaces: 242006902) |
|
Immediately | $ 63.70 | ||||
| 125 | 242071201 | Cover, Sump |
|
$ 114.82 | |||||
| 126 | 242081301 | Screw-shoulder |
|
- | |||||
| 107A | 241971601 | Shield-light, Frzr |
|
$ 35.65 | |||||
| 107B | 241971202 | Shield-light, Upper |
|
$ 36.41 | |||||
| 108A | 241971801 | Cover-wiring, Freezer Light |
|
$ 87.32 | |||||
| 10A | 241860402 | Cover-evap Coil, Lower |
|
Immediately | $ 130.91 | ||||
| 16A | 240590403 | Socket-light, Top & Mid (Replaces: 240590402) |
|
$ 26.54 | |||||
| 16B | 241622802 | Socket-light, Frz Light |
|
$ 65.93 | |||||
| 1A | 242052101 | Duct-air |
|
$ 57.17 | |||||
| 21A | 5304453707 | Screw, #8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 21D | 241548003 | Screw, 10-32 X 3/8 |
|
$ 3.03 | |||||
| 35A | 241763006 | Hinge-lower, Zinc, Lh |
|
- | |||||
| 36A | 241868202 | Spacer, Door, Lower Lh |
|
$ 23.51 | |||||
| 38A | 241761302 | Bracket-upper Hinge, Lh |
|
$ 64.49 | |||||
| 40A | 242099805 | Cover-upper Hinge, White, Lh |
|
- | |||||
| NI | 241969001 | Cap, Screw |
|
$ 16.69 | |||||
| NI | 242118001 | Shield, Wiring Cover, Freezer |
|
- | |||||
| NI | 240494001 | Plug, Button, Cab Liner Holes (Replaces: 240479601) |
|
Immediately | $ 18.20 | ||||
| NIA | 241953904 | Screw, #8-18 |
|
$ 10.63 | |||||
| NIA | 242061602 | Harness-wiring, Air Duct |
|
- | |||||
| NIA | 241679901 | Screw, Shield Mtg. |
|
$ 14.18 | |||||
| NIA | 242104901 | Harness-wiring |
|
$ 127.40 | |||||
| NIAA | 241969202 | Harness-wiring, Top Light |
|
$ 92.84 | |||||
| NIAA | 241860104 | Gasket-coil Cover |
|
Immediately | $ 29.77 | ||||
| NIAB | 241860105 | Gasket-coil Cover |
|
Immediately | $ 17.87 | ||||
| NIB | 242072501 | Cover-eps, Damper |
|
$ 19.72 | |||||
| NIB | 242004802 | Foam Strip |
|
$ 5.67 | |||||
| NIB | 242118101 | Sheild, Wiring Cover |
|
- | |||||
| NIBA | 241510802 | Harness-wiring, Frz Light |
|
$ 41.81 |
