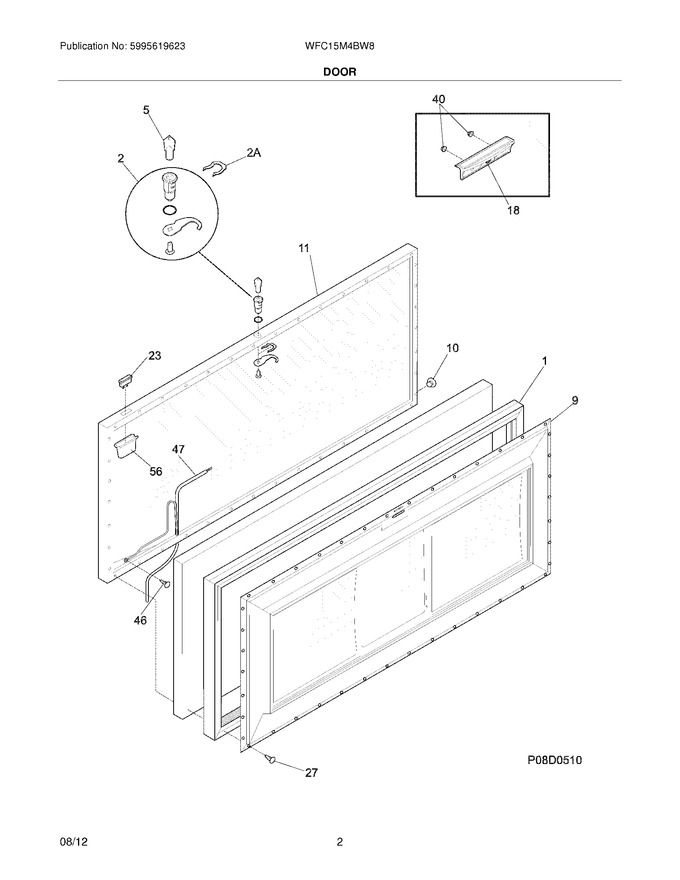

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door,white				$ 204.03
2	297090100		Lock Assy				$ 21.27
5	297147700		Key,lock			Immediately	$ 7.57
9	216057804		Panel-inner Lid, White				$ 140.44
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129930		Lid,white				$ 280.25
18	216205006		Handle		Appelez-nous	-
23	297181900		Light,signal ,amber				$ 16.96
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
46	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
56	297015600		Cap,sig Light Seal		Appelez-nous	-
2A	297090900		Clip,spring				$ 10.85
F47	216823700		Harness-lid/defrost				$ 62.21
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83
