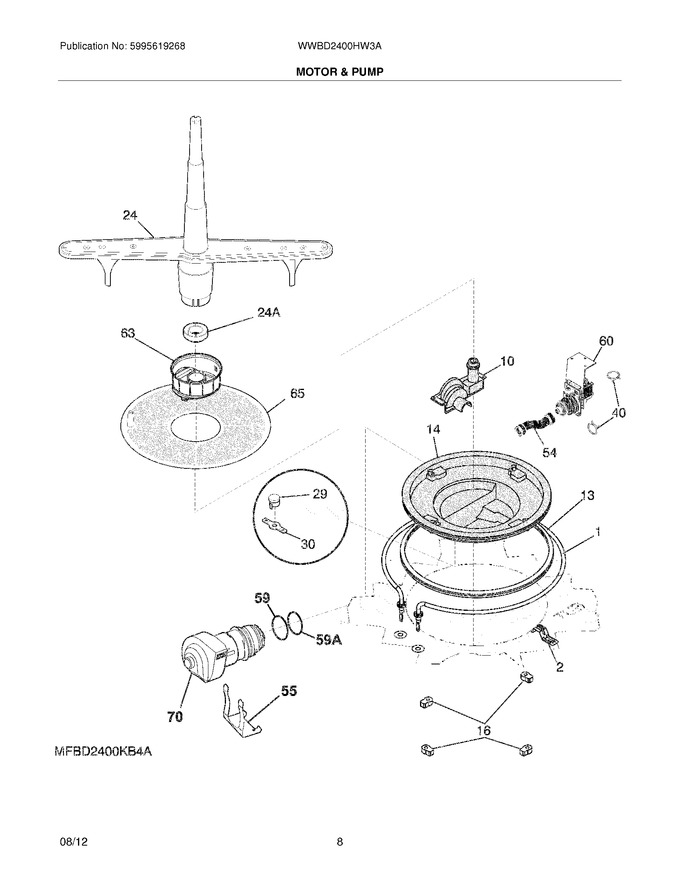

09 - Motor & Pump


11 - Frame


13 - Racks


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	154465101		Bracket,heater ,(2)			Immediately	$ 11.34
10	154335301		Cover-volute				$ 69.30
13	154246801		Gasket-sump				$ 52.17
14	154462003		Housing,sump				$ 43.47
16	154246502		Retainer, Sump			Immediately	$ 40.40
24	5304518927		Spray Arm,lower ,w/heat Shield   (Replaces: 154567701)			Immediately	$ 47.00
30	154241101		Retainer,thermostat				$ 3.62
40	154348401		Clamp,hose ,red ,push Spring ,(3)				$ 32.96
40	154348502		Clamp,red ,hose				$ 9.41
54	154234401		Hose,connector				$ 68.68
55	5304534830		Bracket,motor   (Replaces: 154595901)				$ 5.54
59	154246901		O-ring,rear			Immediately	$ 56.70
63	5304532205		Base,soil Director ,w/filter   (Replaces: 154775401)			Immediately	$ 13.74
65	140281806020		Filter-polypro   (Replaces: 154252401)			Immediately	$ 8.85
24A	154335201		Nut,spray Arm			Immediately	$ 44.10
59A	154247001		O-ring,front			Immediately	$ 56.70
F1	154825001		Heater,round			Immediately	$ 91.19
F29	154227810		Thermostat				$ 10.29
F60	A00126501		Drain Pump Assy   (Replaces: 154640201)			Immediately	$ 130.16
F70	154844001		Motor & Pump Assy,w/o-rings				$ 328.39
NI	154779601		Screw,ph ,8-10 ,(2)				$ 1.42
NI	154106202		Nut,heater ,(2)			Immediately	$ 18.32
NI	154289801		Shield-heater Terminal				$ 7.33
NI	154783101		Screw,plt ,8-10			Immediately	$ 7.09
NI	154754901		Screw,sump Mtg ,8-16 ,(4)			Immediately	$ 4.26
NI	154297701		Screw,retainer-thermo				$ 13.46
NI	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)				$ 73.71
NI	154426201		Bracket,motor ,drain				$ 53.39
NI	154581501		Screw,drain Motor ,(3)				$ 13.46
