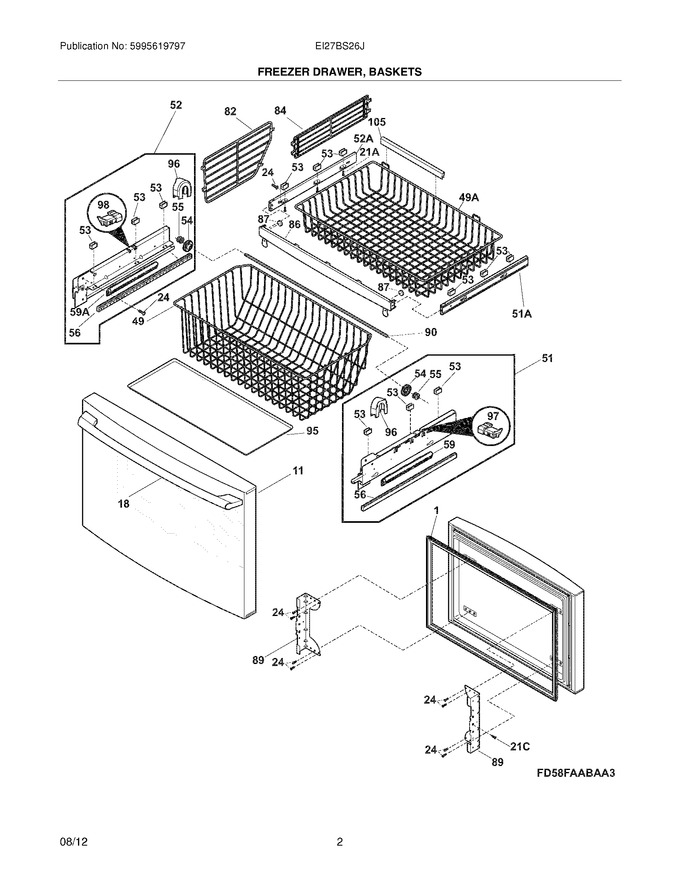

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241987901		Drawer,white ,freezer				$ 267.67
18	241881324		Handle-frzr Drawer,white		Appelez-nous	-
24	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 19.23
49	242026802		Basket-frzr,lower				$ 216.41
51	241883604		Slide Assembly,basket Lower ,rh ,freezer Drawer			Immediately	$ 287.06
52	241883704		Slide Assembly,basket Lower ,lh ,freezer Drawer				$ 350.37
53	241824201		Retainer-basket				$ 63.89
54	241770201		Pinion				$ 34.73
55	241770301		Pinion-idler				$ 21.97
56	242158001		Rack-drawer Travel				$ 43.89
59	5304474655		Closure,drawer   (Replaces: 241979702)				$ 70.88
82	242027103		Divider,basket ,lower		Appelez-nous	-
84	241780904		Divider,basket ,upper   (Replaces: 241780901)				$ 71.29
86	242090701		Bar-stabilizer,freezer Drawer				$ 63.32
87	241812202		Magnet,freezer Drawer				$ 72.30
89	241972302		Bracket-freezer Drawer				$ 109.21
90	241770703		Bar-timing				$ 35.07
95	242090801		Tray,spill Guard		Appelez-nous	-
96	241973501		Cover-pinion   (Replaces: 242156901)				$ 57.27
97	241926401		Actuator,rh ,white ,light				$ 17.54
98	241926402		Actuator,lh ,white ,light				$ 16.55
105	242116801		Trim-basket				$ 17.72
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
21C	242146401		Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4)			Immediately	$ 14.27
49A	241780809		Basket-frzr,upper				$ 146.95
51A	241894223		Slide Assembly,basket ,rh ,freezer Drawer   (Replaces: 241894211)			Immediately	$ 132.53
52A	241894224		Slide Assembly,basket ,lh ,freezer Drawer   (Replaces: 241894213)				$ 131.83
59A	241979701		Closure,drawer		Appelez-nous	-
F1	5304537408		Gasket-frzr Drawer,white ,magnetic   (Replaces: 241778302)			Immediately	$ 86.28
F21C	5304497384		Plate,tapping   (Replaces: 242147601)				$ 15.60
NI	242011101		Pin-lock				$ 15.17
NI	241701902		Screwdriver,hex ,3/32`` ,ball Driver				$ 19.85
NI	241601002		Wrench,allen		Appelez-nous	-
NI	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
NI	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
NI	241979601		Bumper,rubber				$ 22.68
NI	242039701		Screw				$ 13.46
NI	241899703		Screw,truss Head ,no.10-32 X 1/4 ,zinc				$ 15.92
