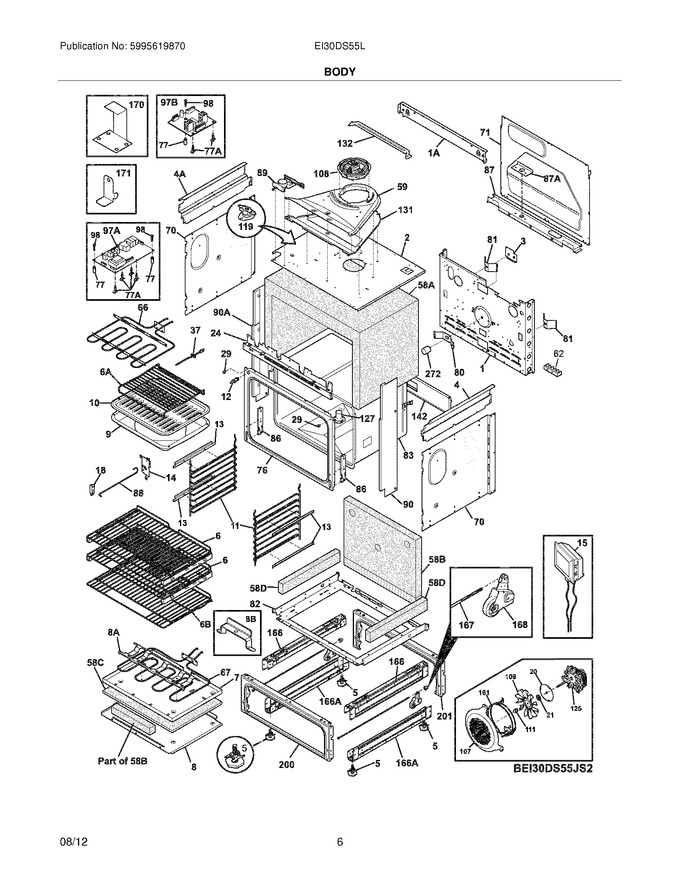

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570502		Panel,insualtion ,top		Appelez-nous	-
3	318402800		Plate,cover				$ 9.23
4	318905700		Panel,side ,rh Upper				$ 62.79
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
6	318903105		Shelf,oven ,(2)				$ 416.08
7	318297303		Box,bake Element				$ 125.84
8	318359500		Panel,service				$ 140.09
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318903300		Rack,oven Shelf ,(2)				$ 105.80
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
18	318562300		Bracket,rod				$ 16.87
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
24	318913118		Trim,vent ,black ,upper		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
59	318570603		Duct,cooling Fan				$ 38.26
62	5303935061		Terminal Block Kit		Appelez-nous	-
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318260007		Panel,rear Box				$ 102.90
76	318056298		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258770		Shield,insulation ,lower				$ 26.46
83	318261459		Liner,oven Assy		Appelez-nous	-
86	318241408		Receptacle,hinge ,(2)				$ 47.41
87	318260628		Bracket,cable Mtg.		Appelez-nous	-
88	318376505		Rod,latch				$ 13.72
90	318905814		Panel,side ,white ,rh		Appelez-nous	-
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357008		Adapter Assembly,w/vent Tube ,and Catalyst				$ 40.32
131	318574804		Bottom,cooling Duct				$ 72.91
132	318579301		Bracket,supprt ,duct		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
166	318298400		Bracket,base Support ,(2)				$ 59.48
167	318147811		Screw,lock ,adjusting				$ 31.19
168	318302400		Wheel & Bracket Assy,adjustable ,(2)				$ 75.13
170	318335700		Anti-tip & Accessories				$ 56.89
171	318335200		Bracket,anti-tilt				$ 31.90
200	318298226		Frame,drawer ,front				$ 107.00
201	318298233		Frame,drawer ,black   (Replaces: 318298230)				$ 45.36
272	318249409		Tube,protector		Appelez-nous	-
1A	318905600		Back,main ,upper				$ 55.24
4A	318905701		Panel,side ,lh Upper				$ 75.14
58A	318594304		Insualtion,wrapper ,top & Sides		Appelez-nous	-
58B	318594310		Insualtion,oven Back		Appelez-nous	-
58C	318294912		Insullation,bake Element				$ 97.17
58D	318372018		Insulation,20.5 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372015)				$ 14.18
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318908006		Shelf,oven   (Replaces: 318908003)			Immediately	$ 232.91
77A	316114100		Spacer				$ 60.96
87A	318111806		Plate,cord Set Mtg				$ 11.68
8A	318313601		Bracket,bake Element				$ 71.45
8B	318403202		Bracket,service Panel ,(2)				$ 17.69
90A	318905815		Panel,side ,white ,lh		Appelez-nous	-
F108	318575603		Motor,cooling Fan			Immediately	$ 184.19
F119	318578506		Thermostat,cooling Fan ,105 Deg.			Immediately	$ 58.19
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 257.99
F161	318255511		Element,convection ,2500 W			Immediately	$ 110.20
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255815		Element,broil ,4000w				$ 168.89
F67	318254916		Element,bake ,2500w ,8 Pass   (Replaces: 318254911)			Immediately	$ 204.47
F89	318261229		Motor,latch Assy   (Replaces: 318261221)			Immediately	$ 93.62
F97A	316443933		Board,relay				$ 225.96
F97B	316519200		Board,variable Speed			Immediately	$ 256.24
FNI	318578330		Harness,wiring ,latch		Appelez-nous	-
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 49.32
FNI	318582612		Harness,wiring ,main		Appelez-nous	-
NI	318264200		Plate,grounding Strap				$ 23.51
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	318268004		Insulation,element				$ 9.29
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5304500008		Screw,10-24 X 1.750   (Replaces: 5304416408)				$ 12.13
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303317179		Screw-element, 6 X 3/4				$ 2.42
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	318579001		Bracket,wire				$ 11.08
NI	318531701		Spacer,(2)				$ 12.05
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304456367		Rivet,ladder Bracket ,(8)				$ 13.99
