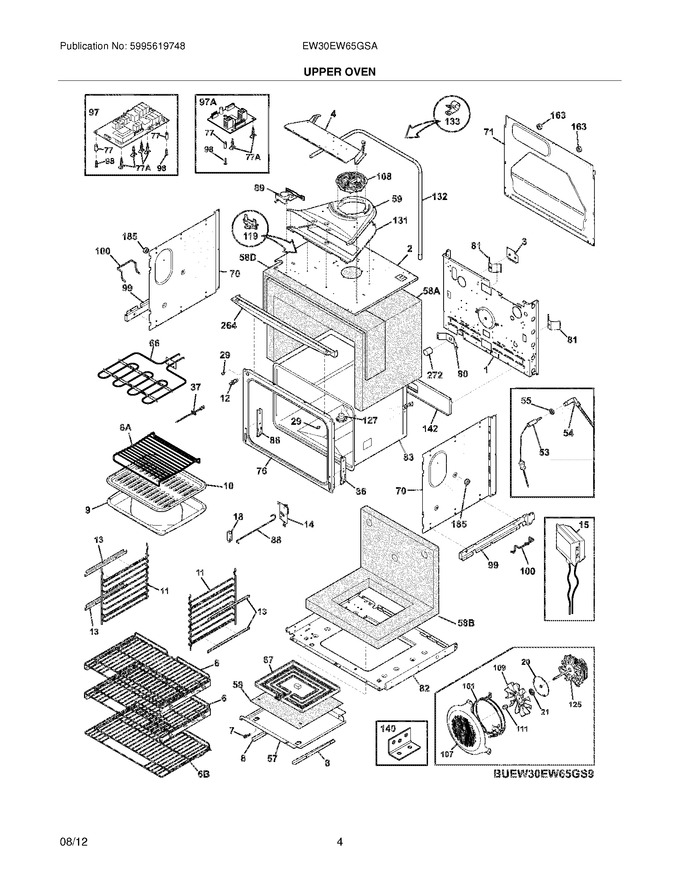

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318570500		Panel,insualtion ,top				$ 86.89
3	318402800		Plate,cover				$ 9.23
4	318577700		Panel,mounting		Appelez-nous	-
6	318903110		Shelf,oven		Appelez-nous	-
7	318368300		Pin,locking ,(2)				$ 9.93
8	318361801		Bracket,element ,(2)		Appelez-nous	-
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318903300		Rack,oven Shelf ,(2)				$ 105.80
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
18	318562300		Bracket,rod				$ 16.87
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
55	316247700		Nut,mounting				$ 18.20
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318570600		Duct,cooling Fan		Appelez-nous	-
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318260007		Panel,rear Box				$ 102.90
76	318056298		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318261445		Liner,oven Assy				$ 183.15
86	318241408		Receptacle,hinge ,(2)				$ 47.41
88	318376505		Rod,latch				$ 13.72
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318252804		Support,side		Appelez-nous	-
100	318410300		Handle,moving ,double Oven ,(2)		Appelez-nous	-
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318317105		Adapter Assembly,vent Tube ,w/converter				$ 7.65
131	318574801		Bottom,cooling Duct		Appelez-nous	-
132	318579102		Tube,exhaust ,upper		Appelez-nous	-
133	318591500		Clamp,exhaust Tube		Appelez-nous	-
140	318399310		Bracket,holding		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257716		Trim,oven ,black ,front		Appelez-nous	-
272	318249409		Tube,protector		Appelez-nous	-
58A	318594302		Insualtion,wrapper ,top & Sides				$ 106.94
58B	318594324		Insualtion,wrapper ,rear & Bottom				$ 80.17
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318908006		Shelf,oven   (Replaces: 318908003)			Immediately	$ 232.91
77A	316114100		Spacer				$ 60.96
F108	318575604		Motor,cooling Fan				$ 135.35
F119	5304506123		Thermal Cutoff,121 Deg. ,(2)   (Replaces: 318944000)				$ 31.86
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	318398203		Motor,fan				$ 172.63
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 257.99
F15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
F161	318255511		Element,convection ,2500 W			Immediately	$ 110.20
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F53	5304504202		Probe,meat Temp   (Replaces: 318601302)			Immediately	$ 106.19
F54	318601206		Receptacle,probe			Immediately	$ 171.52
F66	318255806		Element,broil ,4000w				$ 282.09
F67	318601604		Element,hidden Bake			Immediately	$ 260.38
F89	318261226		Motor,latch Assy				$ 153.41
F97	316443950		Board,relay ,dual Oven				$ 451.33
F97A	316519205		Board,relay ,convection				$ 256.95
FNI	318572779		Harness,wiring ,main		Appelez-nous	-
FNI	318199787		Wiring Harness,latch ,no Bas		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 49.32
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	318172904		Support,wire		Appelez-nous	-
NI	5304455945		Spacer,pad		Appelez-nous	-
NI	5304537066		Lubricant,high Temp ,oven Racks   (Replaces: 5304469602)			Immediately	$ 42.62
NI	5304456367		Rivet,ladder Bracket ,(8)				$ 13.99
NI	318373001		Bracket,receptacle ,temp Probe				$ 9.87
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	316247800		Washer,lock ,mtg				$ 18.20
NI	318579001		Bracket,wire				$ 11.08
NI	318268004		Insulation,broil Element				$ 9.29
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	5304476994		Screw,8-18 X 1/4 ,(2)		Appelez-nous	-
NI	5304417153		Screw,shoulder ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
NI	316095800		Clip-hold Down				$ 9.93
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
