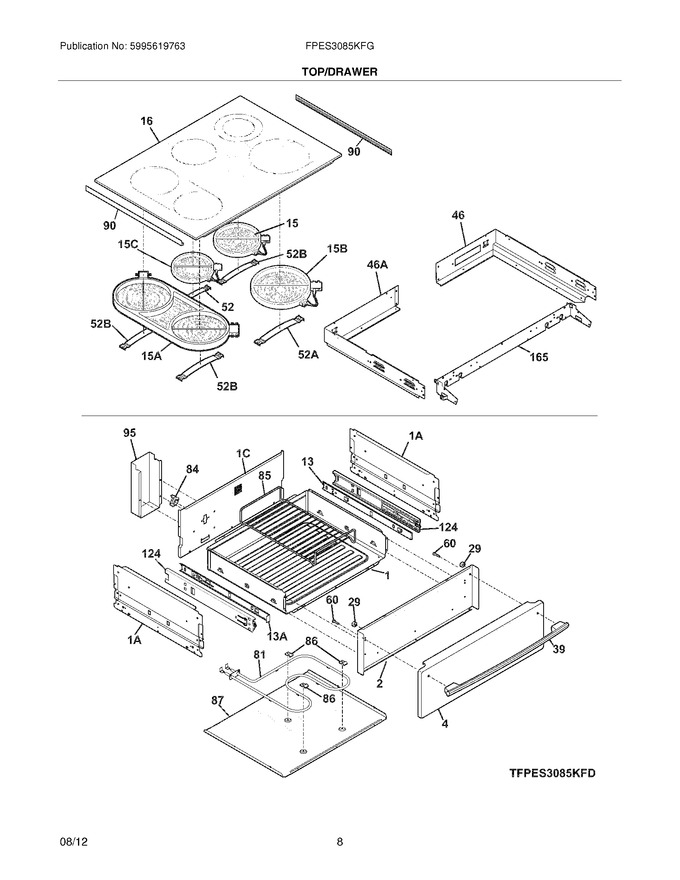

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
10 - Wiring Diagram
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318304404 | Drawer,body Assembly |
|
$ 195.56 | |||||
| 2 | 318303907 | Panel,drawer ,black ,inner |
|
$ 124.90 | |||||
| 4 | 318298829 | Panel,drawer ,stainless ,front (Replaces: 318298826) |
|
$ 210.92 | |||||
| 13 | 318259509 | Glide,warmer ,inner Rh |
|
$ 26.25 | |||||
| 16 | 318916901 | Smooth Top,assembly ,glass/steel ,black |
|
$ 383.15 | |||||
| 29 | 318147430 | Bumper,(2) |
|
$ 18.95 | |||||
| 39 | 5304532118 | Handle,door/drawer ,stainless (Replaces: 316551500) |
|
$ 112.88 | |||||
| 46 | 318568200 | Box,burner ,rh |
|
$ 23.99 | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 66.25 | |||||
| 60 | 5304472906 | Screw,handle Mtg ,no.10-24 X 1.5 ,(2) |
|
$ 8.98 | |||||
| 85 | 807328301 | Rack,warmer Drawer (Replaces: 318345601) |
|
$ 87.21 | |||||
| 86 | 316095800 | Clip-hold Down |
|
$ 9.93 | |||||
| 87 | 318300102 | Panel,warmer Drawer ,lower |
|
$ 106.22 | |||||
| 90 | 318368001 | Channel,glass Protector ,(2) |
|
$ 22.98 | |||||
| 95 | 318303800 | Shield,wire |
|
- | |||||
| 124 | 316105501 | Glide,outer/rh & Lh ,(2) |
|
$ 90.72 | |||||
| 165 | 318913300 | Deflector,box ,front |
|
$ 48.67 | |||||
| 13A | 318259508 | Glide,warmer ,inner Lh |
|
$ 27.88 | |||||
| 1A | 318300003 | Panel,warmer Drawer ,side ,(2) |
|
$ 56.13 | |||||
| 1C | 318300301 | Panel,warmer Drawer ,rear |
|
- | |||||
| 46A | 318568201 | Box,burner ,lh |
|
$ 28.93 | |||||
| 52A | 318122010 | Spring,element Mtg ,3000w |
|
$ 62.51 | |||||
| 52B | 318122008 | Spring,element Mtg ,1800w/3000w |
|
$ 90.80 | |||||
| F15 | 318198952 | Element,surface ,750/1800w ,dual Radiant (Replaces: 318198936) |
|
Immediately | $ 250.90 | ||||
| F15A | 318258203 | Element,bridge ,1800/2600 |
|
Immediately | $ 371.39 | ||||
| F15B | 8583165300010 | Element,surface ,9`` ,turbo ,3200w ,radiant (Replaces: 316530000) |
|
Immediately | $ 76.06 | ||||
| F15C | 318198843 | Element,surface ,warm Zone ,100w ,radiant |
|
$ 206.01 | |||||
| F81 | 318255301 | Element,warmer Drawer |
|
$ 105.42 | |||||
| F84 | 318005108 | Thermostat |
|
Immediately | $ 81.14 | ||||
| FNI | 318228976 | Harness,wiring ,cooktop |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(4) |
|
$ 15.17 | |||||
| NI | 134716700 | Washer,flat ,lower (Replaces: 3201909) |
|
$ 2.12 | |||||
| NI | 5304476994 | Screw,8-18 X 1/4 ,(2) |
|
- | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 |
