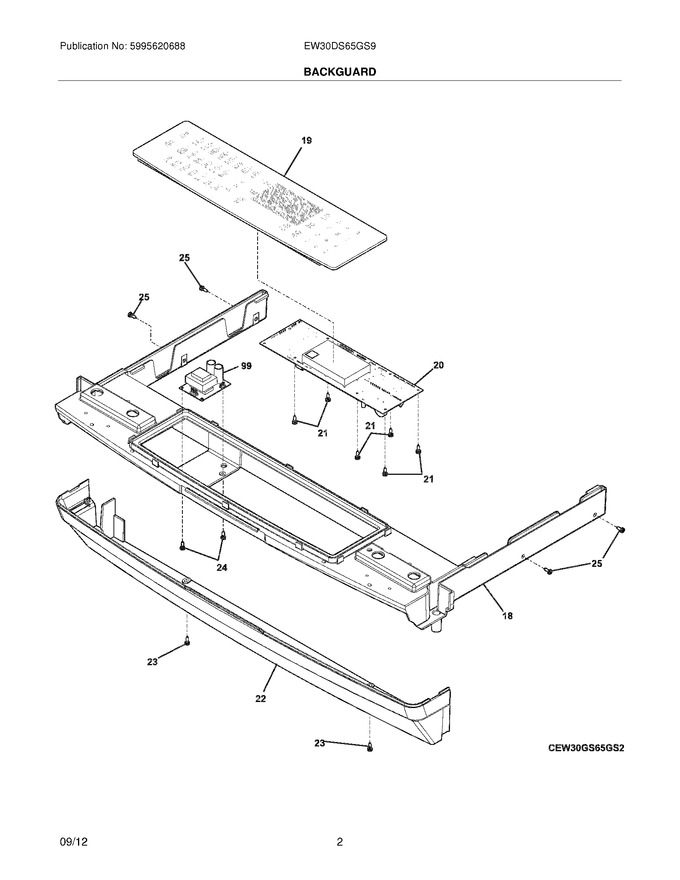

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
12 - Wiring Diagram
13 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 318900300 | Subframe,control |
|
$ 223.44 | |||||
| 21 | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| 22 | 318905005 | Panel,service ,stainless |
|
$ 450.32 | |||||
| 23 | 5304417153 | Screw,shoulder ,8-18 X 1/2 ,(4) |
|
- | |||||
| 24 | 5303307980 | Screw,8-32 X 0.437 ,(4) |
|
Immediately | $ 14.18 | ||||
| 25 | 5303131801 | Screw, 10 X 3/8 |
|
- | |||||
| F19 | 318387130 | Control Assembly,glass ,black ,w/interface |
|
$ 1,690.38 | |||||
| F20 | 316576704 | Controller,electronic ,es631 |
|
$ 384.79 | |||||
| F99 | 316535201 | Board,power Supply ,8v |
|
$ 349.42 | |||||
| FNI | 318578309 | Harness,wiring ,power Supply |
|
- | |||||
| FNI | 318578326 | Harness,wiring ,timer |
|
$ 204.44 | |||||
| NI | 318163602 | Cleaner,stainless Steel |
|
$ 26.51 | |||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 |
