New Model Search:

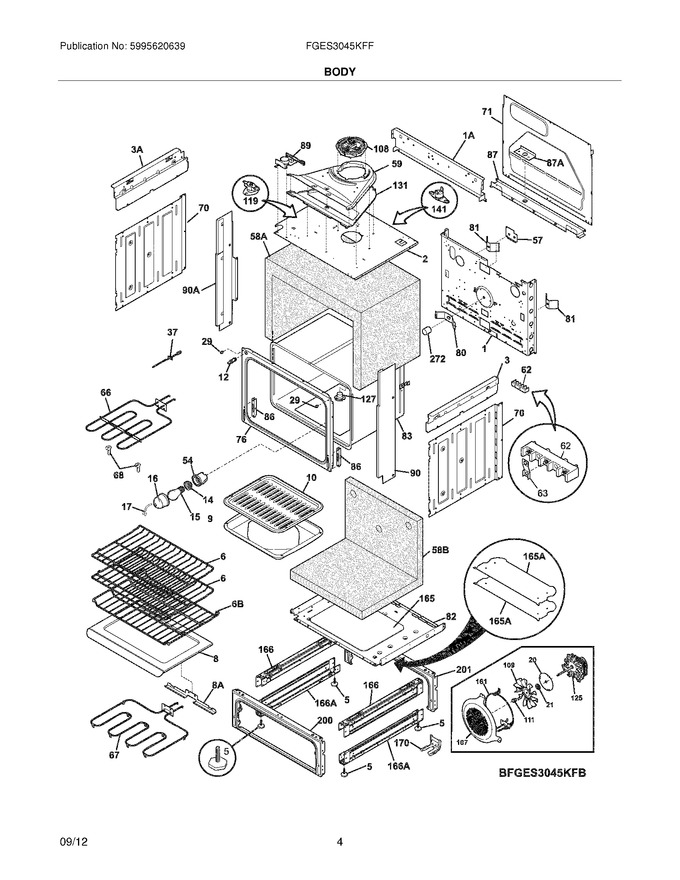

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259220 | Back,main |
|
$ 88.31 | |||||
| 2 | 318570500 | Panel,insualtion ,top |
|
$ 86.89 | |||||
| 3 | 318225230 | Panel,bodyside ,upper Rh |
|
- | |||||
| 5 | 318175510 | Screw,leveling ,w/tee Nut (Replaces: 318175508) |
|
Immediately | $ 24.26 | ||||
| 6 | 318922301 | Rack,oven |
|
Immediately | $ 163.05 | ||||
| 8 | 318262001 | Cover,element |
|
$ 398.49 | |||||
| 9 | 316081900 | Pan,broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert,broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 14 | 316116400 | Receptacle,oven Light (Replaces: 318224000) |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp,oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer,light Cover |
|
- | |||||
| 20 | 318389400 | Plate,retainer |
|
$ 16.21 | |||||
| 21 | 318389000 | Seal,ring |
|
$ 22.75 | |||||
| 29 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 54 | 318222400 | Housing,oven Light |
|
$ 58.22 | |||||
| 57 | 318402800 | Plate,cover |
|
$ 9.23 | |||||
| 59 | 318570600 | Duct,cooling Fan |
|
- | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 63 | 318264200 | Plate,grounding Strap |
|
$ 23.51 | |||||
| 68 | 5304403015 | Support,hanger ,broil Element |
|
$ 35.04 | |||||
| 70 | 318259105 | Shield,insulation ,sides ,(2) |
|
$ 91.51 | |||||
| 71 | 318260007 | Panel,rear Box |
|
$ 102.90 | |||||
| 76 | 318056292 | Front,oven |
|
$ 131.67 | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318258765 | Shield,insulation ,lower |
|
$ 85.68 | |||||
| 83 | 318261451 | Liner,oven Assy |
|
$ 192.94 | |||||
| 86 | 318561100 | Receptacle,hinge ,(2) |
|
$ 21.23 | |||||
| 87 | 318260627 | Bracket,cable Mtg. |
|
- | |||||
| 90 | 5304511889 | Panel,filler ,black ,rh (Replaces: 318296904) |
|
$ 74.42 | |||||
| 107 | 318219405 | Cover,fan |
|
$ 82.69 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318317105 | Adapter Assembly,vent Tube ,w/converter |
|
$ 7.65 | |||||
| 131 | 318574800 | Bottom,cooling Duct |
|
- | |||||
| 165 | 318322600 | Plate,shield |
|
- | |||||
| 166 | 318298410 | Bracket,base Support ,(2) |
|
$ 75.83 | |||||
| 170 | 318170400 | Anti-tip Bracket |
|
- | |||||
| 200 | 318298226 | Frame,drawer ,front |
|
$ 107.00 | |||||
| 201 | 318298233 | Frame,drawer ,black (Replaces: 318298230) |
|
$ 45.36 | |||||
| 272 | 318249409 | Tube,protector |
|
- | |||||
| 1A | 318225120 | Panel,main Back ,upper |
|
$ 45.47 | |||||
| 3A | 318225231 | Panel,bodyside ,upper Lh |
|
- | |||||
| 58A | 318594302 | Insualtion,wrapper ,top & Sides |
|
$ 106.94 | |||||
| 58B | 318594322 | Insualtion,wrapper ,rear & Bottom |
|
- | |||||
| 6B | 318919801 | Rack,oven |
|
$ 335.42 | |||||
| 87A | 318111806 | Plate,cord Set Mtg |
|
$ 11.68 | |||||
| 8A | 318318600 | Bracket,element ,hidden Bake |
|
$ 37.17 | |||||
| 90A | 5304511890 | Panel,filler ,black ,lh (Replaces: 318296905) |
|
$ 81.14 | |||||
| F108 | 318575600 | Motor,cooling Fan |
|
Immediately | $ 272.25 | ||||
| F119 | 318578506 | Thermostat,cooling Fan ,105 Deg. |
|
Immediately | $ 58.19 | ||||
| F12 | 808136601 | Switch,light ,door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| F125 | 5304463302 | Motor,fan (Replaces: 318398201) |
|
Immediately | $ 259.95 | ||||
| F141 | 318005229 | Switch,thermal Cutout |
|
Immediately | $ 50.04 | ||||
| F161 | 318255504 | Element,convection ,350 W |
|
$ 97.07 | |||||
| F166 | 318298403 | Bracket,base Support ,lower ,(2) |
|
- | |||||
| F170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| F37 | 5304504897 | Sensor,oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| F66 | 318255801 | Element,broil ,3400w |
|
$ 99.39 | |||||
| F67 | 318254909 | Element,bake ,3400w ,8 Pass |
|
- | |||||
| F89 | 318261229 | Motor,latch Assy (Replaces: 318261221) |
|
Immediately | $ 93.62 | ||||
| FNI | 318384474 | Wiring Harness,main |
|
- | |||||
| NI | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| NI | 08002868 | Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box |
|
$ 14.18 | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| NI | 5304417153 | Screw,shoulder ,8-18 X 1/2 ,(4) |
|
- | |||||
| NI | 5304461333 | Screw,10-32 X 17/32 |
|
Immediately | $ 13.46 | ||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 | |||||
| NI | 318268004 | Insulation,element |
|
$ 9.29 | |||||
| NI | 5303323136 | Screw-ground |
|
- | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 318579001 | Bracket,wire |
|
$ 11.08 | |||||
| NI | 318368501 | Seal,housing ,flat Washer |
|
- | |||||
| NI | 318091102 | Bracket,glass Or Wire |
|
- | |||||
| NI | 5303324184 | Screw,8-18 X 5/16 ,black |
|
Immediately | $ 14.18 | ||||
| NI | 316519700 | Screw,no.8-18 X 3/8 ,(10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 5303323129 | Screw,8 X 0.750 |
|
- | |||||
| NI | 318235301 | Connector Assy.,w/3 Lugs ,& Instructions (Replaces: 318235300) |
|
$ 29.06 | |||||
| NI | 5304400192 | Retainer,wiring |
|
- | |||||
| NI | 318531701 | Spacer,(2) |
|
$ 12.05 |
