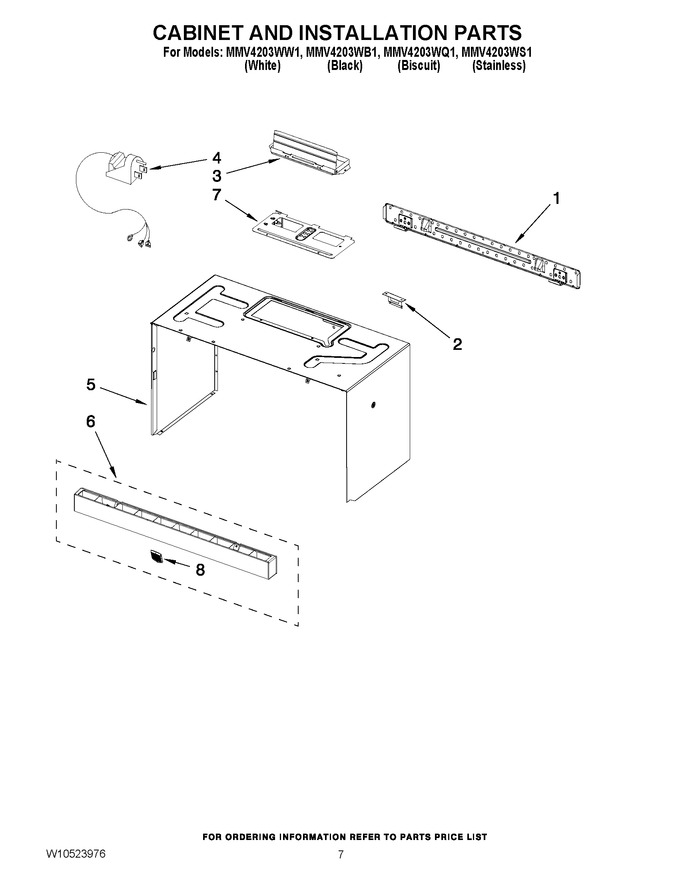

06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 21.16 | ||||
| 2 | 8206385 | Support, Wire Clip |
|
$ 31.89 | |||||
| 3 | W10843943 | Damper Assembly (Replaces: 8206442) |
|
Immediately | $ 65.74 | ||||
| 4 | W10708076 | Cord, Power (Replaces: W10269470) |
|
$ 18.48 | |||||
| 5 | WPW10462001 | Case, Outer (black, Stainless) (Replaces: W10462001) |
|
$ 255.01 | |||||
| 5 | WPW10462003 | Case, Outer (white) (Replaces: W10462003) |
|
$ 250.22 | |||||
| 5 | W10461999 | Case, Outer (biscuit) |
|
- | |||||
| 6 | W10527310 | Grille, Vent (black) |
|
$ 84.34 | |||||
| 6 | W10527311 | Grille, Vent (biscuit) |
|
- | |||||
| 6 | W10259232 | Grille, Vent (stainless) |
|
Immediately | $ 144.91 | ||||
| 6 | W10527308 | Grille, Vent (white) |
|
$ 93.71 | |||||
| 7 | W10210832 | Plate, Damper |
|
$ 6.68 | |||||
| 8 | W10286845 | Nameplate (white, Black, Stainless) |
|
$ 35.23 | |||||
| 8 | W10286846 | Nameplate (biscuit) |
|
- | |||||
| NI | 8205948 | Installation, Hardware |
|
$ 23.06 | |||||
| NI | W10190018 | Template, Upper |
|
Immediately | $ 6.47 | ||||
| NI | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| NI | W10556400 | Main Harness (Replaces: W10448619) |
|
$ 155.90 | |||||
| NI | W10246226 | Grnd Wire, Filter |
|
- | |||||
| NI | W10245226 | Hdlmp/tt Wire Assy |
|
- |
