SELECT A DIAGRAM

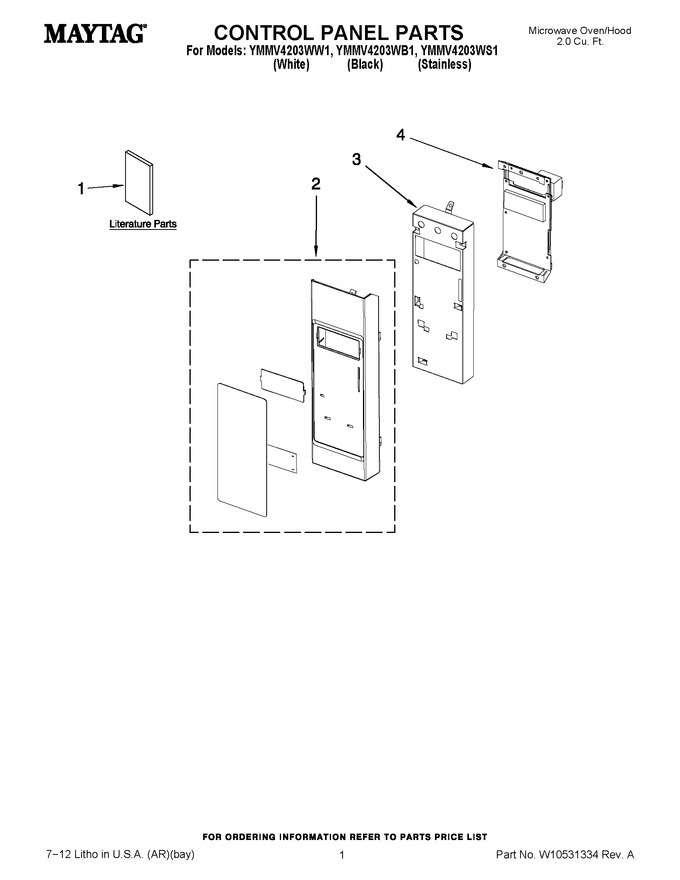

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10311671		U & C Guide		Appelez-nous	-
1	W10311673		Tech Sheet, Slim		Appelez-nous	-
1	W10311675		Quick Reference Guide		Appelez-nous	-
1	W10344703		Install, Instruct.		Appelez-nous	-
2	W10335296		Panel Asy, Control Includes Lens And Membrane Switch (white)				$ 285.81
2	W10335295		Panel Asy, Control Includes Lens And Membrane Switch (black)				$ 308.11
2	W10335298		Panel Asy, Control Includes Lens And Membrane Switch (stainless)				$ 304.88
3	W10247749		Bracket, Control				$ 145.56
4	W10335438		Microcomputer				$ 236.28

    View Diagram in Separate Window       Print Part List
