SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

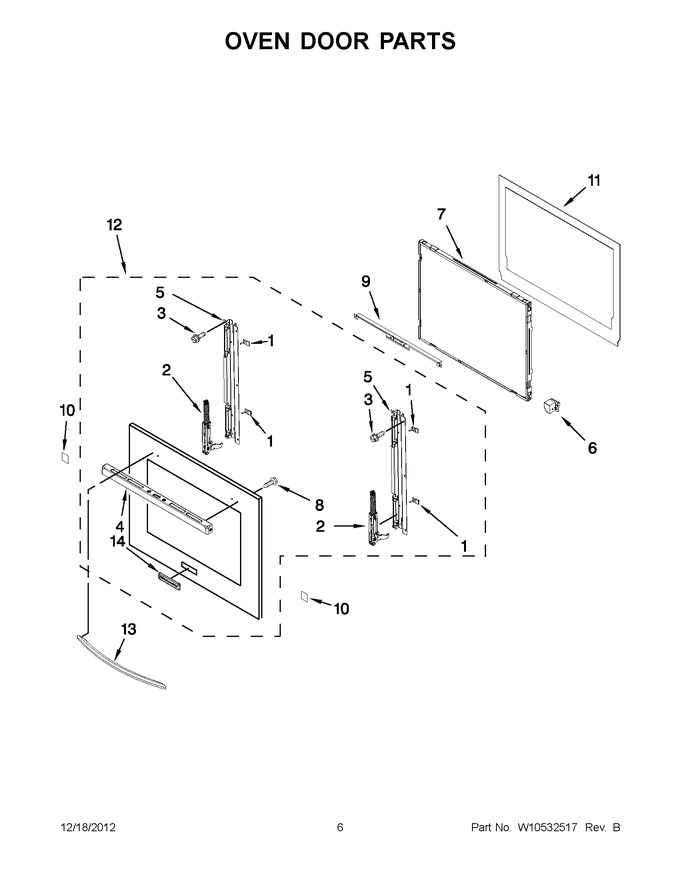

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 7.21
2	W11642291		Hinge, Door   (Replaces: W10419878)				$ 71.35
3	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 6.47
4	W10416258		Vent, Door Top		Appelez-nous	-
5	W10284278		Rail, Door Side (left)		Appelez-nous	-
5	W10284279		Rail, Door Side (right)		Appelez-nous	-
6	W10284284		Bracket, Door Side (left)		Appelez-nous	-
6	WPW10581826		Bracket, Door Side (right)   (Replaces: W10284283)				$ 57.11
7	W10347599		Assembly, Window Pack				$ 212.42
8	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.16
9	W10459352		Bracket, Glass				$ 145.30
10	W10840861		Spacer   (Replaces: W10517440)				$ 8.89
11	WPW10335921		Liner, Door   (Replaces: W10335921)				$ 354.53
12	W10364932		Assembly, Door Glass Lower (black)		Appelez-nous	-
12	W10364933		Assembly, Door Glass Lower (white)		Appelez-nous	-
12	W10364931		Assembly, Door Glass Lower (stainless)		Appelez-nous	-
12	W10364935		Assembly, Door Glass Upper (black)		Appelez-nous	-
12	W10634061		Assembly, Door Glass Upper (white)   (Replaces: W10364936)		Appelez-nous	-
12	W10364934		Assembly, Door Glass Upper (stainless)		Appelez-nous	-
13	W10284919		Handle, Door (black)		Appelez-nous	-
13	W10284920		Handle, Door (white)		Appelez-nous	-
13	WPW10437675		Handle, Door (stainless)   (Replaces: W10437675)				$ 173.66
14	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 63.17
14	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 59.99
14	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 49.98

    View Diagram in Separate Window       Print Part List
