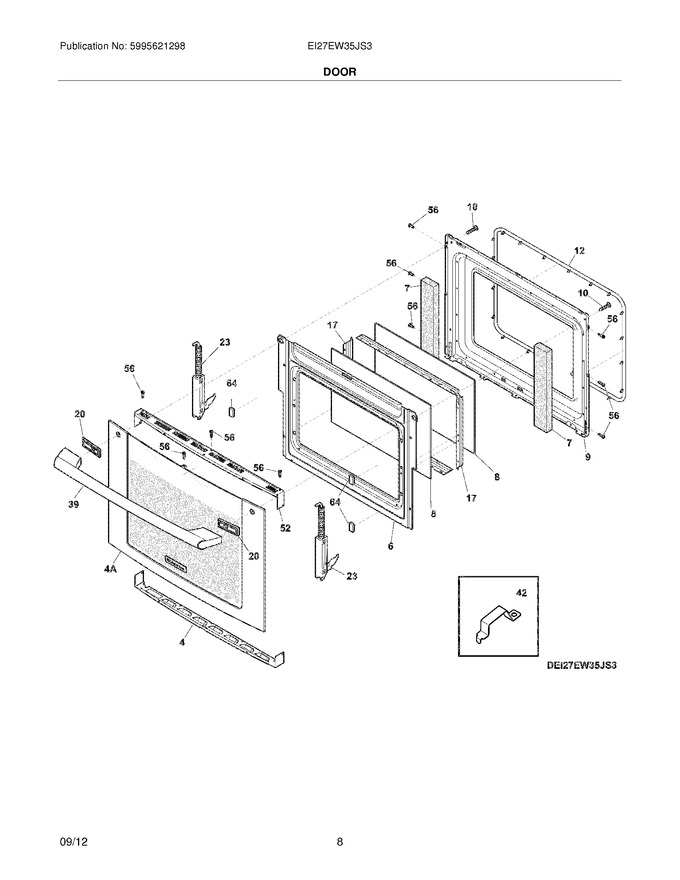

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318901803		Trim,door ,black ,bottom		Appelez-nous	-
6	318901002		Deflector,door   (Replaces: 318901001)		Appelez-nous	-
7	318372013		Insulation,door		Appelez-nous	-
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318900816		Liner,oven Door		Appelez-nous	-
10	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
12	318053136		Gasket,oven Door Seal				$ 124.16
17	318264701		Spacer,glass ,(2)		Appelez-nous	-
20	318902902		Spacer,handle ,grey ,(2)				$ 53.76
23	318586004		Hinge,oven Door		Appelez-nous	-
39	241881303		Handle,door ,stainless		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318901603		Trim,door ,black ,upper		Appelez-nous	-
56	5304476599		Screw,8-18 X 3/8				$ 3.36
64	5304455945		Spacer,pad		Appelez-nous	-
4A	318284083		Panel,door Front ,stainless ,w/nameplate				$ 697.10
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12

    View Diagram in Separate Window       Print Part List
