01 - Cover Sheet

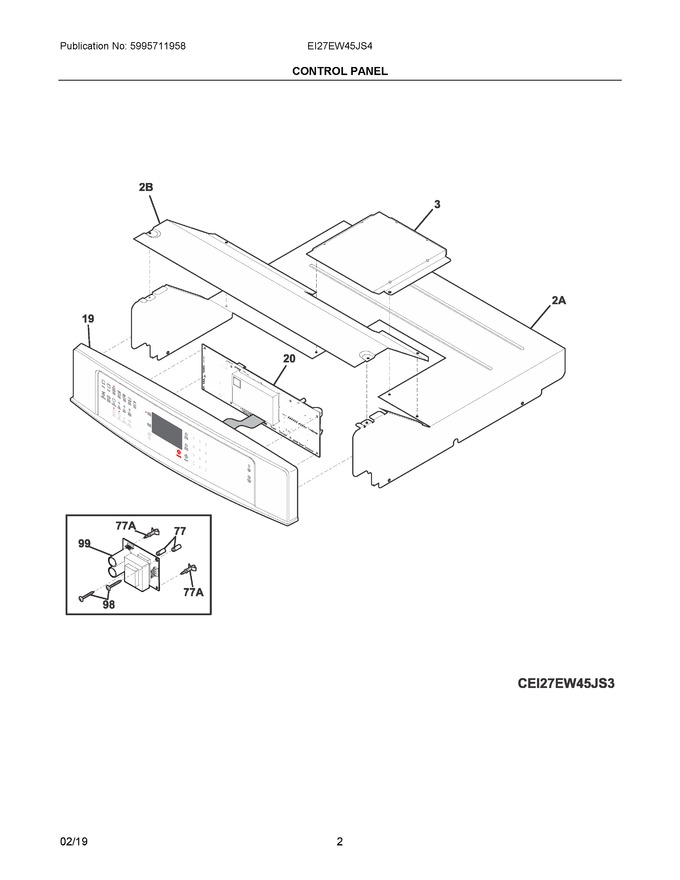

02 - Control Panel
03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 19 | 318366225 | Control Panel Assembly, Glass, Black/stainless, W/touch & Trim |
|
- | |||||
| 20 | 316576657 | Controller, Electronic, Es630 |
|
- | |||||
| 77 | 318293702 | Spacer, Control |
|
$ 16.22 | |||||
| 98 | 5304401490 | Screw, 6-18 X 1, (2) |
|
- | |||||
| 99 | 316535201 | Board, Power Supply, 8v |
|
$ 349.42 | |||||
| 2A | 318257306 | Shield, Oven Top |
|
- | |||||
| 2B | 318260105 | Cover, Box |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| NI | 316519700 | Screw, #8-18 X 3/8, (10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 318572780 | Harness, Wiring, Main, Control Panel |
|
- | |||||
| NIA | 131892100 | Screw, Control Mtg, 6-32 X .25, (5) (Replaces: 316524400) |
|
- |
