SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Microwave

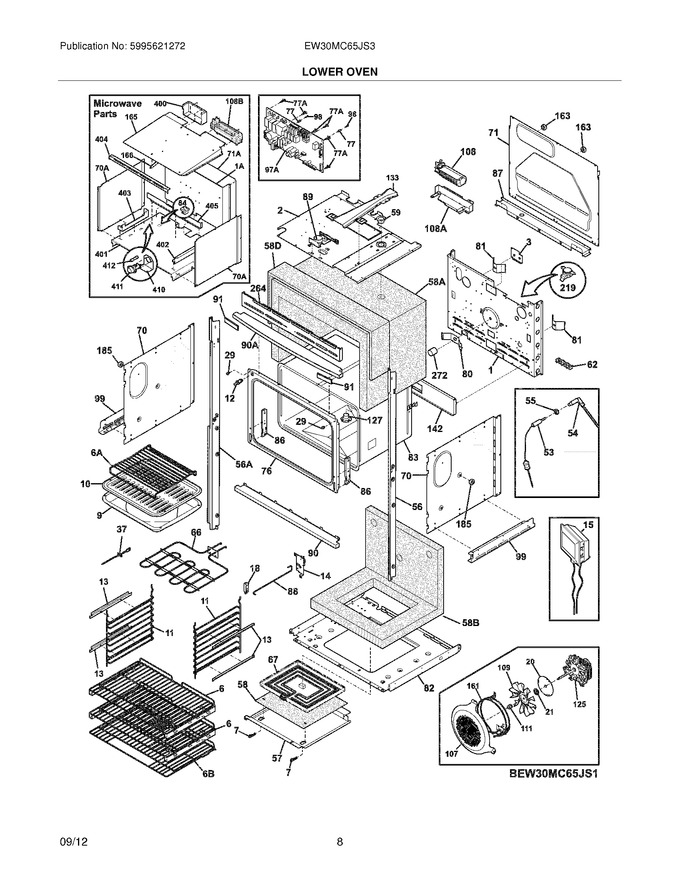

07 - Lower Oven


09 - Doors


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258922		Shield,insulation ,upper		Appelez-nous	-
3	318402800		Plate,cover				$ 9.23
6	318903105		Shelf,oven ,(2)				$ 416.08
7	318368300		Pin,locking ,(2)				$ 9.93
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318903300		Rack,oven Shelf ,(2)				$ 105.80
13	318603913		Bracket,ladder Mtg. ,(4)				$ 66.99
15	318241006		Lamp,oven ,(2) ,halogen				$ 117.71
18	318562300		Bracket,rod				$ 16.87
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
55	316247700		Nut,mounting				$ 18.20
56	318903634		Trim,side Filler ,black ,rh		Appelez-nous	-
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318072577		Duct,oven Vent				$ 16.30
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	318260007		Panel,rear Box				$ 102.90
76	318056298		Front,oven		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258775		Shield,insulation ,lower				$ 116.87
83	318261427		Liner,oven Assy		Appelez-nous	-
86	318241408		Receptacle,hinge ,(2)				$ 47.41
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
88	318376505		Rod,latch				$ 13.72
90	318903514		Trim,oven Bottom ,stainless				$ 319.27
91	318905118		End Cap,middle Trim ,stainless ,(2)				$ 161.07
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
107	318906601		Cover,fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357001		Adapter Assembly,w/vent Tube ,and Catalyst				$ 50.66
133	318347800		Chimney		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
163	318531703		Spacer		Appelez-nous	-
165	318381740		Shield,heat ,base		Appelez-nous	-
166	318577001		Deflector,divider		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257766		Trim,oven ,black ,front				$ 163.17
272	318249409		Tube,protector		Appelez-nous	-
400	318576901		Box,cooling Duct		Appelez-nous	-
401	318297208		Plate,support ,microwave ,30``		Appelez-nous	-
402	318406707		Bracket,attachment		Appelez-nous	-
403	318407603		Bracket,attachment		Appelez-nous	-
404	318410506		Trim,vent ,black		Appelez-nous	-
405	318935102		Panel,back Filler		Appelez-nous	-
410	318933901		Bracket,fuse		Appelez-nous	-
1A	318259215		Back,main ,upper Oven		Appelez-nous	-
56A	318903635		Trim,side Filler ,black ,lh		Appelez-nous	-
58A	318594300		Insualtion,wrapper ,top & Sides				$ 117.23
58B	318594324		Insualtion,wrapper ,rear & Bottom				$ 80.17
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318908006		Shelf,oven   (Replaces: 318908003)			Immediately	$ 232.91
70A	318259116		Shield,insulation ,sides ,(2)		Appelez-nous	-
71A	318260011		Panel,rear Box ,upper		Appelez-nous	-
77A	316114100		Spacer				$ 60.96
90A	318934601		Trim,middle ,black				$ 248.12
F108	318073038		Motor,blower				$ 256.57
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F125	5304463302		Motor,fan   (Replaces: 318398201)			Immediately	$ 259.95
F14	318562200		Sensor Assy,w/switch ,and Bracket				$ 257.99
F161	318255511		Element,convection ,2500 W			Immediately	$ 110.20
F219	318004902		Switch,thermal			Immediately	$ 71.44
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F411	318647300		Holder,fuse   (Replaces: 318576200)			Immediately	$ 217.73
F412	318647300		Fuse,20 Amp   (Replaces: 318576100)			Immediately	$ 217.73
F53	5304504202		Probe,meat Temp   (Replaces: 318601302)			Immediately	$ 106.19
F54	318601206		Receptacle,probe			Immediately	$ 171.52
F66	318255815		Element,broil ,4000w				$ 168.89
F67	318601604		Element,hidden Bake			Immediately	$ 260.38
F84	5304517286		Outlet,electrical ,miniature ,black   (Replaces: 318146843)				$ 91.01
F89	318261228		Motor,latch Assy				$ 113.72
F97A	316570510		Board,relay				$ 247.55
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318946400		Bulb,halogen ,g9 ,40w ,120v			Immediately	$ 49.32
FNI	318572707		Harness,wiring ,latch		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
FNI	318532191		Harness,wiring ,main				$ 184.22
NI	318165800		Spacer				$ 17.72
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5304435874		Plate,covering ,probe		Appelez-nous	-
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	318373001		Bracket,receptacle ,temp Probe				$ 9.87
NI	318268004		Insulation,element				$ 9.29
NI	5304486664		Rivet,ladder Bracket ,(8)				$ 3.52
NI	5304537066		Lubricant,high Temp ,oven Racks   (Replaces: 5304469602)			Immediately	$ 42.62
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5304470882		· Screw,anti-tip ,8 - 5/8 ,black ,(2)				$ 13.46
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	316247800		Washer,lock ,mtg				$ 18.20

    View Diagram in Separate Window       Print Part List
