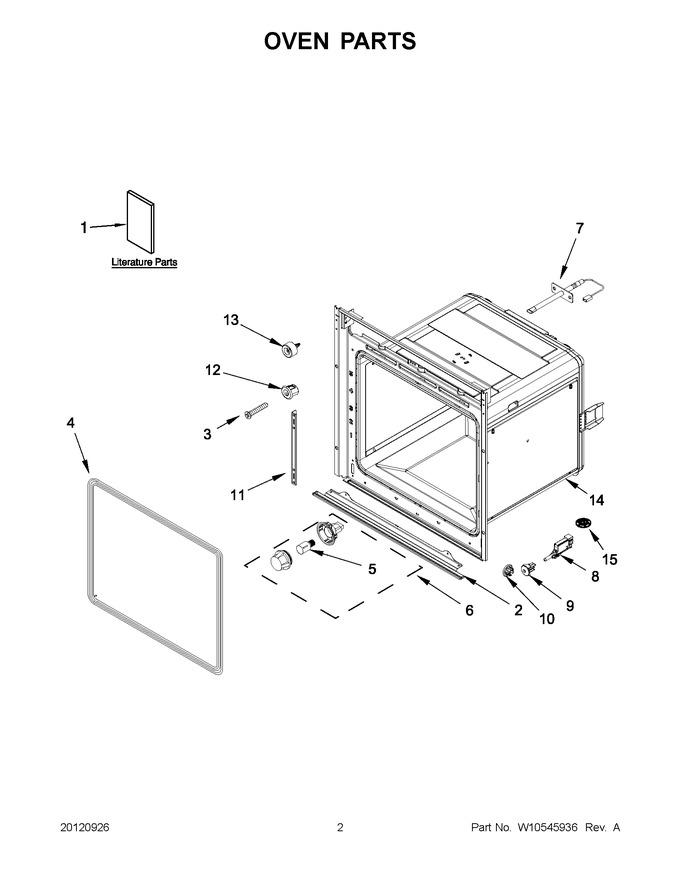

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door
04 - Internal Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10545947 | Tech Sheet |
|
- | |||||
| 1 | W10544829 | Installation Instructions |
|
- | |||||
| 1 | W10545949 | Use And Care Guide |
|
- | |||||
| 2 | W10517979 | Trim, Lower |
|
Immediately | $ 59.66 | ||||
| 3 | W10519818 | Kit, Oven Screws |
|
$ 13.42 | |||||
| 4 | W10519051 | Gasket, Door |
|
$ 22.35 | |||||
| 5 | W11791037 | Bulb, Halogen 40 Watt (Replaces: W10518971) |
|
$ 30.96 | |||||
| 6 | W10518973 | Assembly, Bulb Includes Socket And7 Lens Cover |
|
$ 27.22 | |||||
| 7 | W10519097 | Probe, Oven Temperature |
|
Immediately | $ 41.99 | ||||
| 8 | W10519088 | Assembly, Door Switch |
|
Immediately | $ 21.76 | ||||
| 9 | W10519094 | Joint, Door Switch |
|
Immediately | $ 4.55 | ||||
| 10 | W10519101 | Plug, Oven |
|
$ 5.75 | |||||
| 11 | W10517968 | Hinge, Running Mechanism |
|
- | |||||
| 12 | W10578780 | Bumper, Oven (Replaces: W10519817) |
|
$ 20.04 | |||||
| 13 | W10519808 | Bumper, Oven Door |
|
- | |||||
| 14 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 15 | W10545973 | Foot, Level Oven |
|
- |
