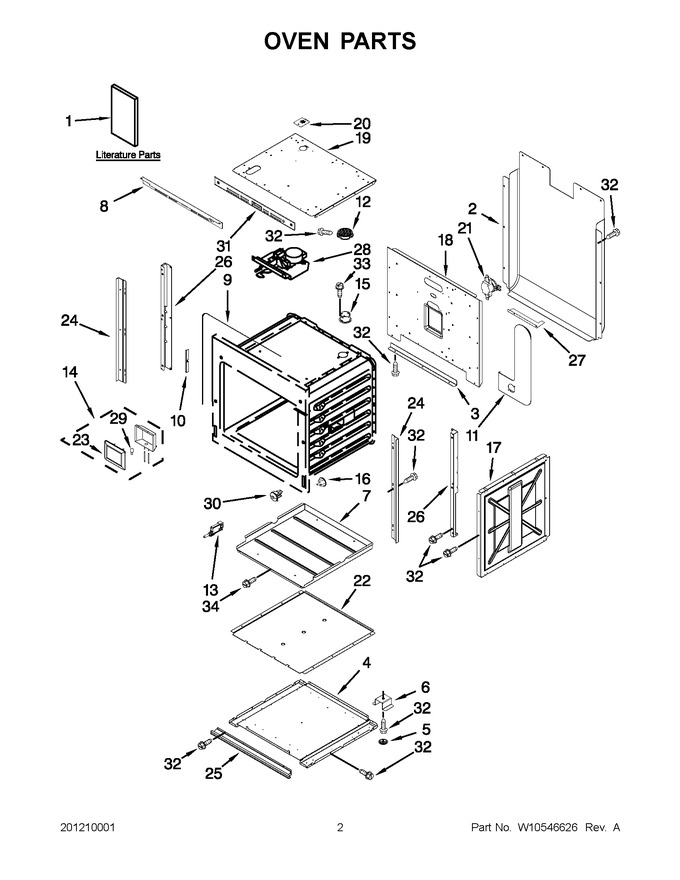

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10450588		Use & Care Guide		Appelez-nous	-
1	W10221386		Instructions, Installation		Appelez-nous	-
1	W10373103		Instructions, Undercounter		Appelez-nous	-
1	9762761		Tips, Safer Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safer Cooking (french)		Appelez-nous	-
1	W10213731		Tech Sheet (english)		Appelez-nous	-
1	W10213740		Tech Sheet (french)		Appelez-nous	-
2	2624F043-51		Back, Main		Appelez-nous	-
3	3601F343-51		Baffle, Grease Deflector		Appelez-nous	-
4	W10280327		Panel, Bottom				$ 256.81
5	8038P035-60		Foot, Plastic				$ 20.82
6	W10213759		Support, Air Channel		Appelez-nous	-
7	3401F079-45		Pan, Hidden Bake		Appelez-nous	-
8	W10176006		Trim, Control Panel Top				$ 222.71
9	W10213818		Gasket				$ 63.05
10	W10176218		Retainer, Gasket				$ 8.11
11	4006W217-45		Assembly, Box Vent		Appelez-nous	-
12	8034P008-60		Screen, Smoke Eliminator				$ 25.43
13	W10286173		Switch, Micro				$ 64.24
14	W10175989		Assembly, Light				$ 95.43
15	8026P065-60		Tube, Vent				$ 21.38
16	74009408		Plug, Button   (Replaces: 7718P033-60)				$ 5.87
17	W10175995		Panel, Side		Appelez-nous	-
18	W10175996		Retainer, Rear Insulation		Appelez-nous	-
19	W10175998		Panel, Top Retainer		Appelez-nous	-
20	W10213792		Cover, Vent				$ 140.20
21	WP7403P899-60		Switch, High Limit   (Replaces: 7403P899-60)			Immediately	$ 181.29
22	W10280325		Channel, Btm Air Bake Element		Appelez-nous	-
23	WP74004607		Lens   (Replaces: W10187003)				$ 20.09
24	W10277586		Trim, Side				$ 64.43
25	WPW10176036		Trim, Bottom Vent (stainless)   (Replaces: W10176036)				$ 171.85
26	W10277423		Bracket, Reinforcement Left Hand				$ 35.20
26	W10277424		Bracket, Reinforcement Right Hand				$ 33.58
27	W10186984		Cover, Rear		Appelez-nous	-
28	WPW10213755		Latch, Door Lock   (Replaces: W10213755)				$ 316.35
29	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 42.64
30	W10213745		Frame, Micro Switch				$ 8.42
31	W10277592		Switch, Convection				$ 103.74
32	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
33	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
34	WP489464		Screw   (Replaces: W10236129)			Immediately	$ 7.05
35	W10186749		Divider, Top		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10186989		Insulation, Wrap		Appelez-nous	-
NI	W10175994		Insulation, Back		Appelez-nous	-
NI	7002P276-60		Insulation, Door Lock Lower		Appelez-nous	-
