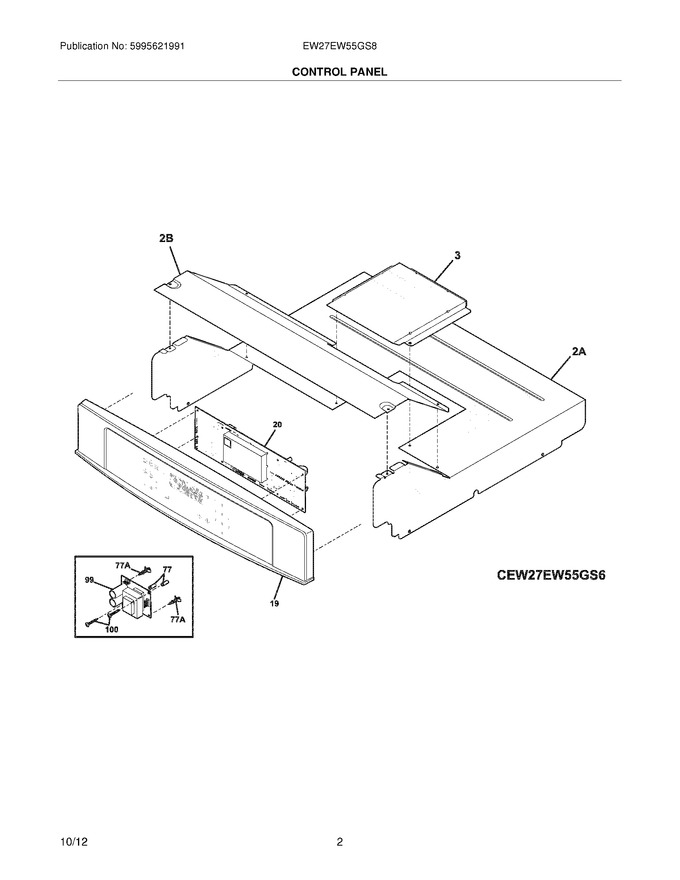

03 - Control Panel
05 - Body
07 - Door
08 - Wiring Diagram
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box,fan Service |
|
- | |||||
| 19 | 318366212 | Control Panel Assembly,glass ,black/stainless,w/touch & Trim |
|
$ 2,504.36 | |||||
| 77 | 318293702 | Spacer,control |
|
$ 16.22 | |||||
| 100 | 5304401490 | Screw,6-18 X 1 ,(2) |
|
- | |||||
| 2A | 318257306 | Shield,oven Top |
|
- | |||||
| 2B | 318260105 | Cover,box |
|
- | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| F20 | 316576652 | Controller,electronic ,es630 |
|
$ 384.46 | |||||
| F99 | 316535201 | Board,power Supply ,8v |
|
$ 349.42 | |||||
| FNI | 318572778 | Harness,wiring ,timer |
|
$ 166.79 | |||||
| NI | 131892100 | Screw,control Mtg ,6-32 X .25 ,(5) (Replaces: 316524400) |
|
- | |||||
| NI | 134178901 | Screw,8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5304436875 | Screw,8-18 X 1/2 ,black ,(3) |
|
$ 14.41 |
