SELECT A DIAGRAM
01 - Cover Sheet

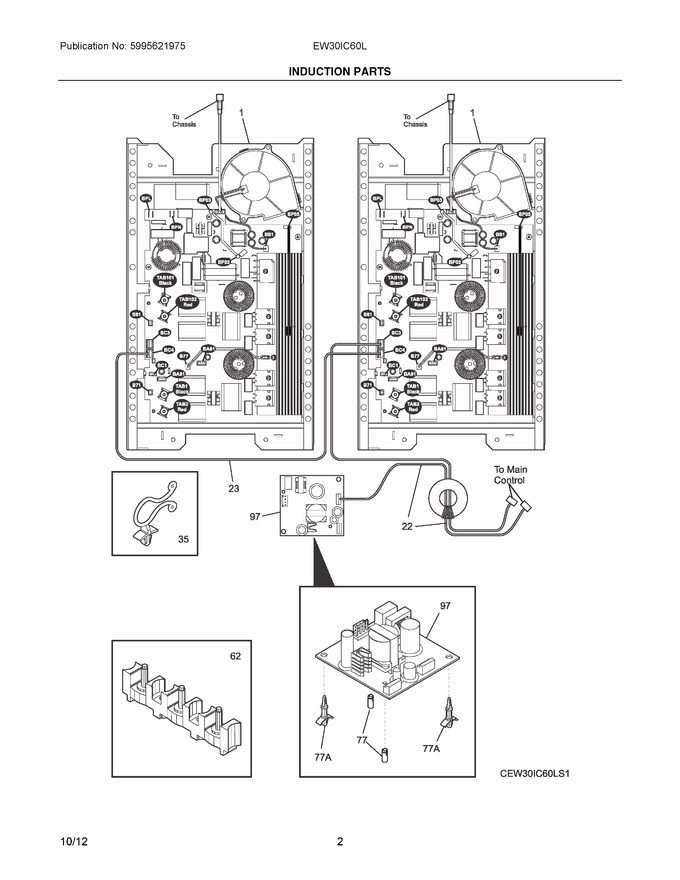

02 - Induction Parts
03 - Main Top/surface Units
04 - Wiring Diagram
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903160-9010 | Housing Assembly, Induction, Generator, W/electronics (Replaces: 318416100) |
|
Immediately | $ 818.43 | ||||
| 22 | 318578362 | Harness, Wiring, Main, W/magnetic Core |
|
$ 178.61 | |||||
| 23 | 318578332 | Harness, Wiring, Communication |
|
Immediately | $ 54.35 | ||||
| 35 | 216273000 | Clip, Wire Retainer |
|
$ 22.42 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 77 | 5304484164 | Spacer, Power Board, Nylon, (2) |
|
- | |||||
| 97 | 318416300 | Board, Power Supply |
|
$ 288.89 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| NI | 5304462994 | Screw, 8-32 X 5/16 |
|
- | |||||
| NI | 318578364 | Harness, Main Wiring, Power Supply, To Generators |
|
- | |||||
| NI | 318578376 | Harness, Wiring, Main Control, To Zones |
|
- | |||||
| NI | 318394497 | Box & Wires Assy |
|
$ 111.75 | |||||
| NI | 5303325170 | Nut, Keps, 8-32, (2) |
|
- | |||||
| NIA | 316205500 | Nut, 10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NIB | 5304447555 | Screw & Washer, 6-32 X 3/4, (2) |
|
$ 15.92 |
