01 - Cover Sheet

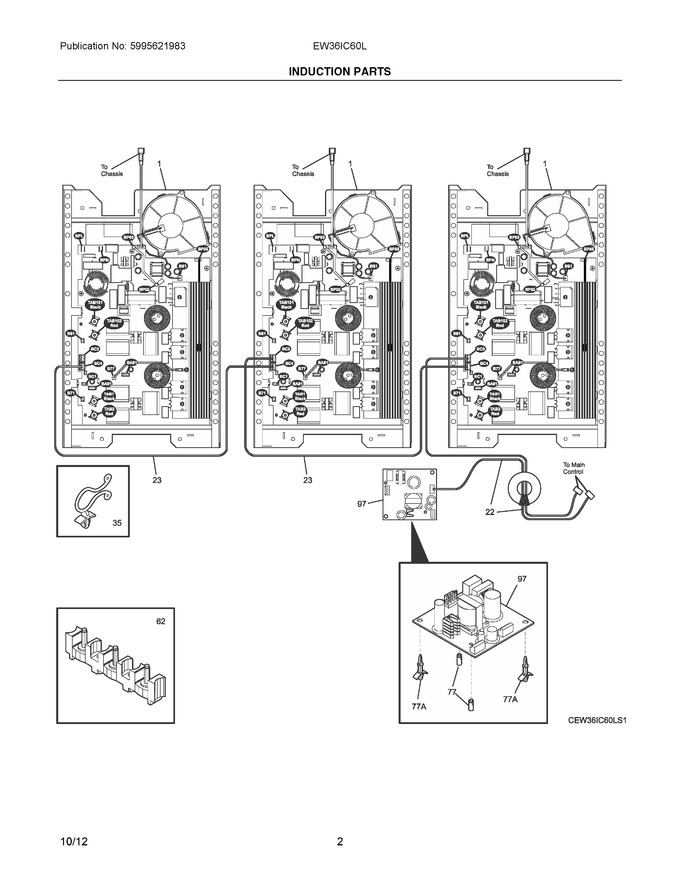

02 - Induction Parts


03 - Main Top/surface Units


04 - Wiring Diagram


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	903160-9010		Housing Assembly, Induction, Generator, W/electronics   (Replaces: 318416100)			Immediately	$ 818.43
22	318578362		Harness, Wiring, Main, W/magnetic Core				$ 178.61
23	318578332		Harness, Wiring, Communication			Immediately	$ 54.35
35	216273000		Clip, Wire Retainer				$ 22.42
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
77	5304484164		Spacer, Power Board, Nylon, (2)		Appelez-nous	-
97	318416300		Board, Power Supply				$ 288.89
77A	316114100		Spacer				$ 60.96
NI	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
NI	318394490		Box & Wires Assy		Appelez-nous	-
NI	318578363		Harness, Main Wiring, Power Supply, To Generators		Appelez-nous	-
NI	318402320		Harness, Wiring, Main Control, To Rear Zone				$ 28.93
NI	318402386		Harness, Wiring, Main Control, To Front Zones		Appelez-nous	-
NI	318402377		Harness, Wiring, Loop Back, Rear Zone				$ 12.76
NI	318578302		Harness, Wiring, Jumper				$ 18.43
NI	318413400		Resistor Assembly, 100k				$ 99.54
NI	5303325170		Nut, Keps, 8-32, (2)		Appelez-nous	-
NIA	5304447555		Screw & Washer, 6-32 X 3/4, (2)				$ 15.92
