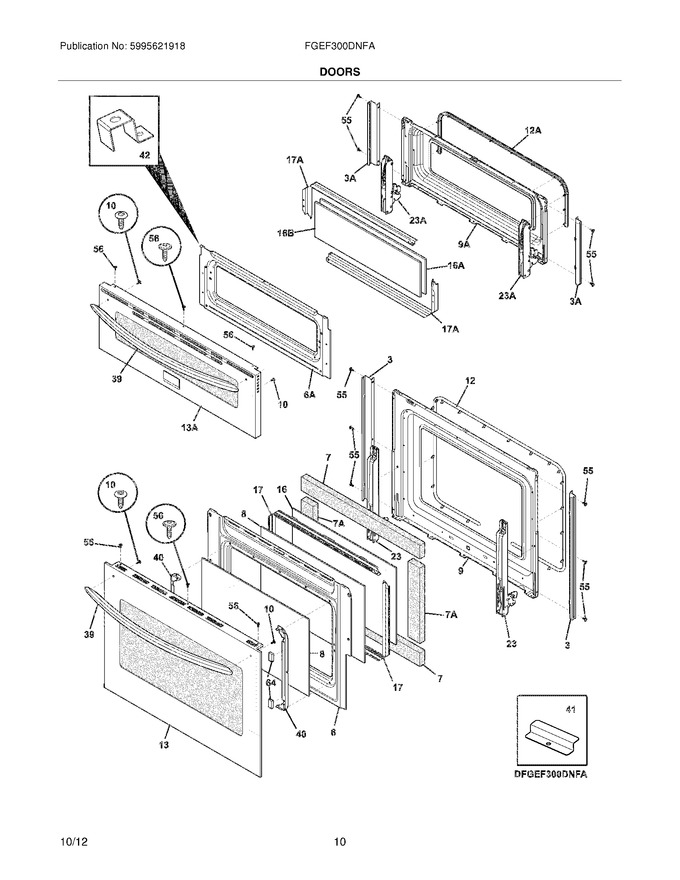

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318301412		Trim,lower Door ,black				$ 32.71
6	318260527		Baffle,door ,lower		Appelez-nous	-
7	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318411646		Liner,oven Door				$ 119.60
10	5304414648		Screw,10-24 ,(2)   (Replaces: 5303308458)				$ 14.18
12	318053120		Seal,oven Door   (Replaces: 318053130)			Immediately	$ 159.62
13	318344030		Door Assy,w/glass ,stainless ,lower Oven		Appelez-nous	-
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,(2)   (Replaces: 318264724)				$ 72.05
23	318567106		Hinge,lower ,oven Door ,(2)		Appelez-nous	-
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 168.44
40	318242702		Bracket,glass Holder ,door ,(2)				$ 19.72
41	318370602		Bracket,glass Retainer ,(2)   (Replaces: 318370600)				$ 13.65
42	318594700		Support,glass ,upper Oven ,(2)		Appelez-nous	-
55	5303308456		Screw,8-18 X 0.531 ,black				$ 10.06
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
12A	318053335		Seal,door ,upper Oven		Appelez-nous	-
13A	318934311		Panel Assembly,upper Door ,stainless ,outer,w/badge		Appelez-nous	-
16A	318947300		Glass,door ,upper Oven ,(2)		Appelez-nous	-
16B	318947303		Glass,door ,clear ,upper Oven		Appelez-nous	-
17A	318264727		Spacer,glass ,upper ,(2)		Appelez-nous	-
23A	318567136		Hinge,door ,upper Oven ,(2)		Appelez-nous	-
3A	318301422		Trim,upper Door ,black		Appelez-nous	-
6A	318260526		Baffle,door ,upper		Appelez-nous	-
7A	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
9A	318950701		Liner,oven Door ,upper		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	318147412		Bumper,base				$ 7.33
NI	316433603		Label,anti-tip				$ 3.55
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
