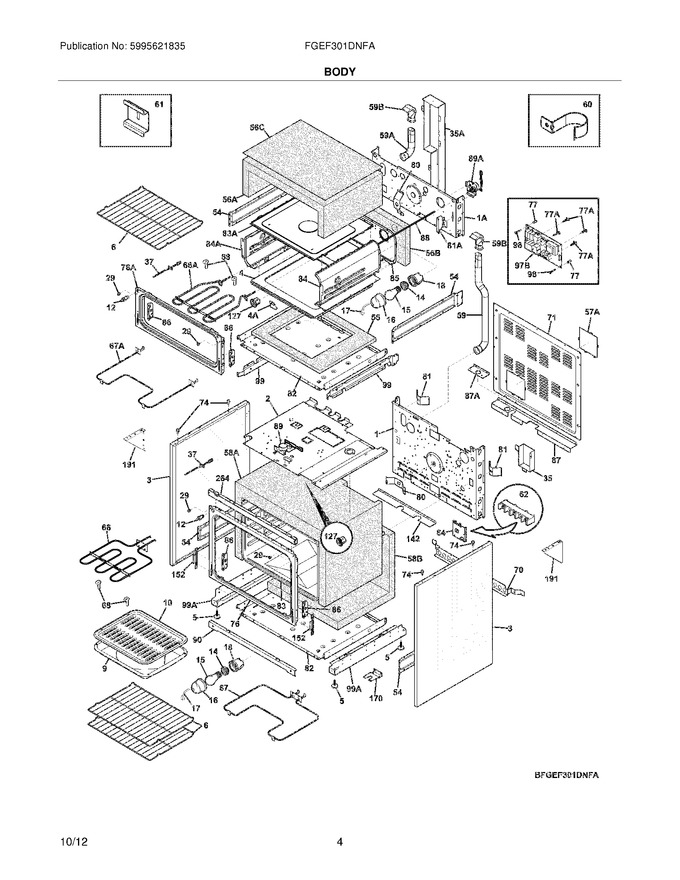

05 - Body


07 - Main Top


09 - Doors


10 - Wiring Diagram


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259283		Back,main		Appelez-nous	-
2	318258960		Shield,insulation ,upper				$ 63.74
3	318299882		Panel,body Side ,black ,(2)				$ 113.66
4	318364111		Liner,oven Bottom				$ 98.06
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318922310		Rack,oven				$ 169.05
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
29	316517600		Spacer,oven Door				$ 12.05
35	318406500		Shield,box		Appelez-nous	-
54	318535405		Bracket,side ,(4)				$ 42.32
56	318362152		Insulation,bottom ,upper Oven		Appelez-nous	-
59	318641301		Tube,vent ,lower Oven		Appelez-nous	-
60	318592000		Bracket,vent Tube ,(3)		Appelez-nous	-
61	318647000		Support,timer		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
64	318561801		Bracket,terminal Block		Appelez-nous	-
68	5304403015		Support,hanger ,broil Element				$ 35.04
70	318565000		Bracket,bottom ,rear		Appelez-nous	-
71	318405404		Panel,rear ,lower		Appelez-nous	-
74	318141910		Bumper,bodyside ,(4)				$ 3.68
76	318056292		Front,oven				$ 131.67
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258778		Shield,insulation ,lower ,(2)		Appelez-nous	-
83	318261471		Liner,oven Assy		Appelez-nous	-
84	318592300		Liner,oven Side ,rh		Appelez-nous	-
85	318364443		Liner,oven Back		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318405500		Bracket,cable Mtg.		Appelez-nous	-
88	318250207		Rod,latch ,w/bushing				$ 62.95
90	318405203		Trim,bottom ,black   (Replaces: 318405201)				$ 56.70
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318252804		Support,side		Appelez-nous	-
127	318641200		Vent Tube,oven ,w/catalyst		Appelez-nous	-
142	318951200		Deflector		Appelez-nous	-
152	318338520		Bracket,lateral Panel ,(2)				$ 18.38
170	318584501		Anti Tip Kit,assembly ,w/template		Appelez-nous	-
191	318322801		Angle,rear Plenum ,(2)		Appelez-nous	-
264	318257841		Trim,oven ,black ,front		Appelez-nous	-
1A	318259282		Back,main ,upper Oven		Appelez-nous	-
35A	318641000		Shield,vent Tube ,cover		Appelez-nous	-
4A	318407200		Bracket,support ,lower Panel		Appelez-nous	-
56A	318362132		Insulation,wrapper ,upper Oven		Appelez-nous	-
56B	318362172		Insulation,rear ,upper Oven		Appelez-nous	-
56C	318641700		Insulation,upper		Appelez-nous	-
57A	318407100		Panel,access		Appelez-nous	-
58A	318362133		Insulation,top & Sides		Appelez-nous	-
58B	318386112		Insulation,back & Bottom		Appelez-nous	-
59A	318641400		Tube,vent ,upper Oven		Appelez-nous	-
59B	318641500		Cap,vent Tube ,(2)		Appelez-nous	-
76A	318056263		Front,upper Oven				$ 96.02
77A	316114100		Spacer				$ 60.96
81A	318373700		Bracket,oven ,(2)		Appelez-nous	-
83A	318364211		Liner,oven Top				$ 103.45
84A	318592301		Liner,oven Side ,lh		Appelez-nous	-
87A	318111806		Plate,cord Set Mtg				$ 11.68
99A	318256210		Bracket,side ,bottom ,(2)		Appelez-nous	-
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F66	318255808		Element,broil ,3400w				$ 121.70
F66A	318255860		Element,broil ,upper Oven ,3000w		Appelez-nous	-
F67	318255013		Element,bake ,lower Oven ,3000w				$ 122.06
F67A	318255012		Element,bake ,upper Oven ,2200w		Appelez-nous	-
F76A	318373811		Bracket,front Frame ,(2)		Appelez-nous	-
F89	318261226		Motor,latch Assy				$ 153.41
F89A	318095967		Motor,latch Assy ,w/brkt & Switch				$ 238.62
F97B	316443938		Board,relay ,dual Oven		Appelez-nous	-
FNI	318370378		Wiring Harness,door Switch ,and Latch Mtr				$ 52.24
FNI	318532135		Harness,wiring ,latch ,no Bas		Appelez-nous	-
FNI	318951700		Harness,wiring ,main		Appelez-nous	-
NI	318264200		Plate,grounding Strap				$ 23.51
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5303325980		Screw,10-32 X 0.437				$ 12.76
NI	318167300		Clip,rod				$ 2.84
NI	5303311164		Spring				$ 18.95
NI	5304436864		Washer,flat				$ 2.84
NI	318346050		Insulation,motor ,door Lock		Appelez-nous	-
NI	318268099		Insulation		Appelez-nous	-
