SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Main Top

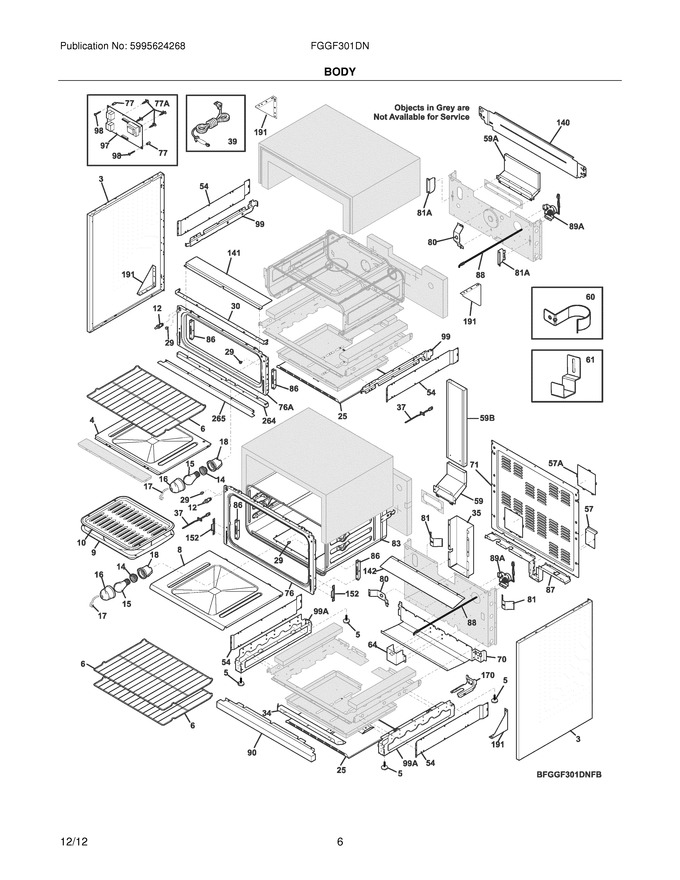

11 - Doors


12 - Wiring Diagram


13 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318299882		Panel,body Side ,black ,(2)				$ 113.66
4	318290505		Panel,oven Bottom ,upper		Appelez-nous	-
5	318175510		Screw,leveling ,w/tee Nut   (Replaces: 318175508)			Immediately	$ 24.26
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318922314		Rack,oven		Appelez-nous	-
8	318290555		Panel,lower Oven ,bottom		Appelez-nous	-
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
25	318291900		Bracket,shield ,lower				$ 94.27
29	316517600		Spacer,oven Door				$ 12.05
30	318405703		Bracket,cooktop Mtg ,black		Appelez-nous	-
34	318289401		Panel,valve Filler		Appelez-nous	-
35	318938300		Deflector,flue		Appelez-nous	-
54	318535405		Bracket,side ,(4)				$ 42.32
57	318584100		Cover,back		Appelez-nous	-
59	318942901		Flue Assembly		Appelez-nous	-
60	318646500		Support,connection		Appelez-nous	-
61	318646300		Bracket,support ,timer		Appelez-nous	-
64	318574201		Bracket,bake Mixer Mtg ,lower Oven		Appelez-nous	-
70	318574101		Panel,floor Protect ,rear		Appelez-nous	-
71	318405404		Panel,rear ,lower		Appelez-nous	-
76	318056249		Front,oven				$ 123.90
77	318293702		Spacer,control				$ 16.22
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
83	318327050		Liner,lower Oven		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318937301		Bracket,cable Mtg.		Appelez-nous	-
88	318250207		Rod,latch ,w/bushing				$ 62.95
90	318355059		Trim,bottom ,black		Appelez-nous	-
98	5304401490		Screw,6-18 X 1 ,(2)		Appelez-nous	-
99	318252806		Support,side		Appelez-nous	-
140	318935300		Bracket,chassis Support ,rear		Appelez-nous	-
141	318581800		Deflector,top		Appelez-nous	-
142	318938401		Panel,insulation ,retainer		Appelez-nous	-
152	318338520		Bracket,lateral Panel ,(2)				$ 18.38
170	318584501		Anti Tip Kit,assembly ,w/template		Appelez-nous	-
191	318322801		Angle,rear Plenum ,(2)		Appelez-nous	-
264	318573609		Trim,vent ,black		Appelez-nous	-
265	318904215		Deflector,door ,black		Appelez-nous	-
57A	318407100		Panel,access		Appelez-nous	-
59A	318943201		Flue Assembly		Appelez-nous	-
59B	318943400		Flue,box		Appelez-nous	-
76A	318056263		Front,upper Oven				$ 96.02
77A	316114100		Spacer				$ 60.96
81A	318373700		Bracket,oven ,(2)		Appelez-nous	-
99A	318256212		Bracket,side ,bottom ,(2)		Appelez-nous	-
F12	808136601		Switch,light ,door   (Replaces: 318394802)			Immediately	$ 44.04
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
F39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
F76A	318373811		Bracket,front Frame ,(2)		Appelez-nous	-
F89A	318095967		Motor,latch Assy ,w/brkt & Switch				$ 238.62
F97	316443937		Board,relay ,dual Oven		Appelez-nous	-
FNI	318572704		Harness,wiring ,door Switch		Appelez-nous	-
FNI	318532197		Harness,wiring ,power Board ,communication,latch Motors		Appelez-nous	-
FNI	318572702		Harness,wiring ,main		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	318167300		Clip,rod				$ 2.84
NI	5303311164		Spring				$ 18.95
NI	5304436864		Washer,flat				$ 2.84
NI	318268099		Insulation		Appelez-nous	-
NI	316519700		Screw,no.8-18 X 3/8 ,(10)   (Replaces: 5304454881)				$ 10.02
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304400192		Retainer,wiring		Appelez-nous	-
NI	318938700		Plate,cover ,upper Oven ,temp Sensor		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
NI	5303323136		Screw-ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
